RTS-1000I High-Temp Insulation Material Resistivity System — 1

Overview

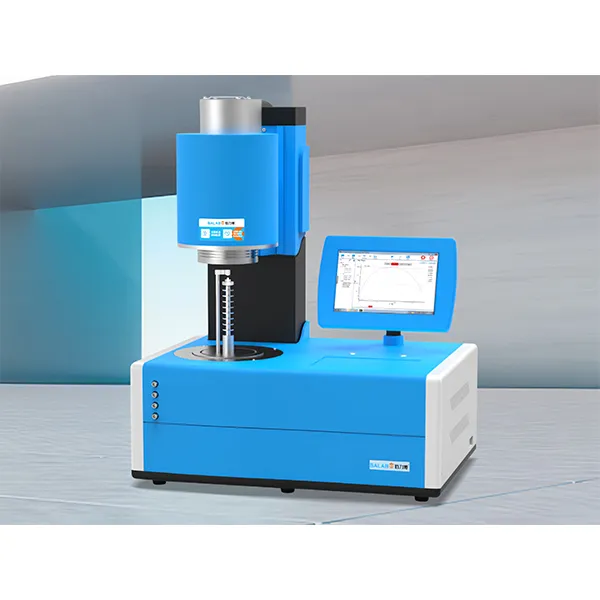

RMS-1000I High-Temp Insulation Material Resistivity Measurement System is engineered for ultra-high resistance characterization of insulating materials. As a professional resistivity test equipment manufacturer, we offer 100Ω to 10PΩ measurement capability with patented triple-ring electrode fixture. The system supports high-temperature, vacuum, and controlled atmosphere testing, making it ideal for aerospace sensors, ceramic insulators, polymer materials, and electronic packaging quality assurance.

Specifications

Parameter Value
Measurement Principle Guarded three-ring electrode method
Main Measurement Resistance, volume resistivity, leakage current vs temperature/time
Range 100 Ω–10 PΩ resistivity solution
Temperature Control Control accuracy up to ±0.5°C
Atmosphere RT/high temperature; vacuum; flowing atmosphere
Notable Features One-touch lift; built-in WiFi training; patented insulation fixture (2019204134342)
Temperature Range RT-600°C / 1000°C
Temperature Control Accuracy ±0.5°C
Temperature Control Method PID precision control (3-stage)
Heating Rate 0-10°C/min (typical 3°C/min)
Resistance Range 100Ω ~ 10PΩ
Resistivity Range 1000Ω.cm ~ 1PΩ.cm
Leakage Current <0.5pA
Sample Specification <25mm diameter, d<4mm
Measurement Method Triple-ring electrode method
Electrode Material Platinum (upper/lower)
Patent No. 2019204134342
Display 10.1" color touchscreen
Data Interface USB
Communication Interface LAN port
Data Storage TXT format
Dimensions (L×H×W) 630×640×450mm
Weight 42.5kg
Power Supply 220V±10%, 50Hz, 2.6kW
Working Environment 5°C to +40°C

Applications

  1. RMS-1000I is essential for high-resistance measurement of ceramic insulators, polymer insulating materials, aerospace sensor components, electronic packaging materials, capacitor dielectrics, and transformer insulation systems. Widely used in aviation, aerospace, power electronics, and high-voltage equipment manufacturing industries.

More Details

Guarded Electrode Measurement
Three-ring electrode design reduces leakage current and improves stability.
High-Temperature Testing
Anti-oxidation furnace with ±0.5°C control accuracy; supports vacuum and flowing atmosphere tests.

FAQ

  • What is the primary measurement principle of RTS-1000I?

    RTS-1000I is designed using advanced electrical characterization methods to measure insulation resistance measurement with extreme precision, eliminating lead resistance and temperature fluctuations.

  • What sample shapes and forms are supported?

    The system supports standard sample geometries including solid blocks, circular thin-sheet discs, and rectangular bars with specialized test fixtures.

  • Does RTS-1000I comply with international laboratory standards?

    Yes, all measurements fully align with international norms such as ASTM, IEEE, and GB/T standards to deliver publishable, research-grade data.
