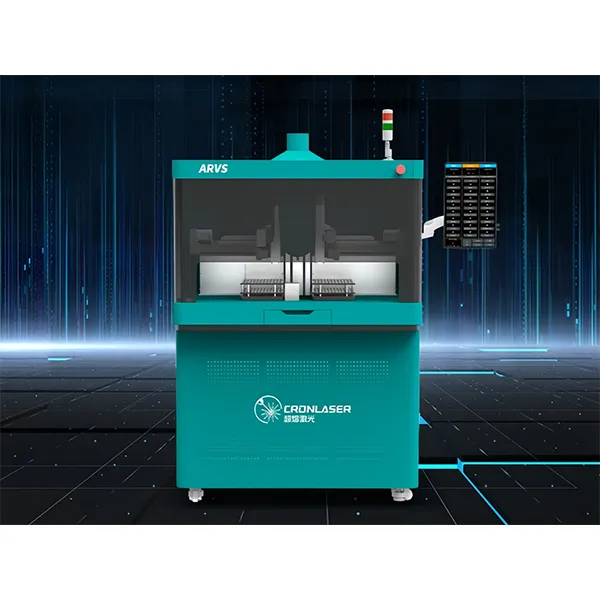

MatMeas ARVS Series Automated Vacuum Tube Sealing – Test Tube Sealer System — 1

Overview

The MatMeas ARVS Series Automatic Vacuum Tube Sealer is designed for high-efficiency glass test tube sealing and bio-sample preservation.

By integrating robotic loading/unloading, rotary vacuum sealing, and 2800 °C HHO flame fusion, the system enables fully automated, contamination-free encapsulation.

Compared with manual sealing, ARVS significantly improves throughput, sealing consistency, and biosafety while reducing operator workload and human error.

It is an ideal solution for laboratories and enterprises requiring standardized, large-batch tube sealing and microbial strain preservation.

Specifications

Workstation Configuration 100 Tubes
Quartz Tube Dimensions Φ6mm, Φ7mm, Φ8mm
Wall Thickness: 1 mm
Sealing Flame Type: Hydrogen-Oxygen (HHO) Flame
Flame Temperature: 2800 °C
Operating Temperature (Ambient): 5 – 40 °C
Sealing Time (Per Tube): Adjustable, approx. 10 s per tube
Vacuum Level： < 0.05 MPa
Sampling / Handling Method: Automatic Robotic Arm
Compatible Sample Types: Quartz Tubes, Ampoules, Lyophilization Tubes, Borosilicate Glass Tubes
Positioning Accuracy: ± 0.05 mm
Accessories Included: Sample Racks, Nitrogen Cooling System
Power Supply: 220 V, 50/60 Hz
Power Consumption: 3255 W
Equipment Dimensions (L×W×H) 720 × 11000 × 1600 mm
Warranty 1 Year
Ordering Information ARVS1001 – Vacuum Level < 0.05 MPa
ARVS1002 – Vacuum Level < 100 Pa
ARVS1003 – Vacuum Level < 0.01 Pa

Applications

  1. Microbial strain preservation
  2. Pharmaceutical ampoule flame sealing
  3. Medical thermometer sealing
  4. One-dimensional material synthesis
  5. Two-dimensional material encapsulation

FAQ

  • What is the primary measurement principle of M?

    M is designed using advanced electrical characterization methods to measure vacuum tube sealing machine with extreme precision, eliminating lead resistance and temperature fluctuations.

  • What sample shapes and forms are supported?

    The system supports standard sample geometries including solid blocks, circular thin-sheet discs, and rectangular bars with specialized test fixtures.

  • Does M comply with international laboratory standards?

    Yes, all measurements fully align with international norms such as ASTM, IEEE, and GB/T standards to deliver publishable, research-grade data.
