Overview

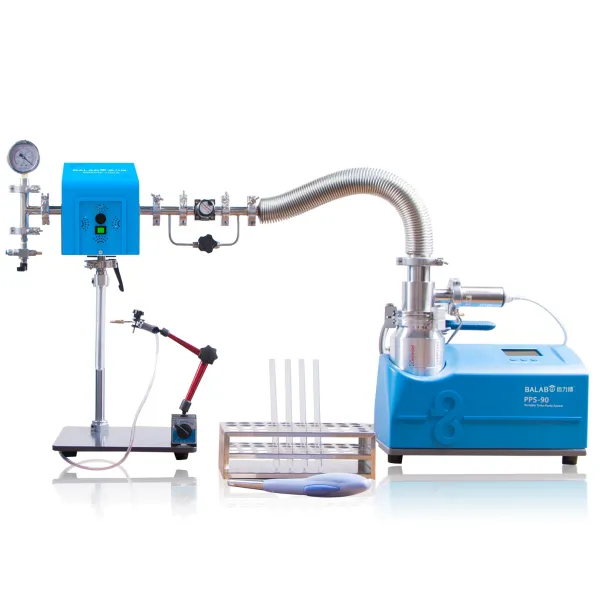

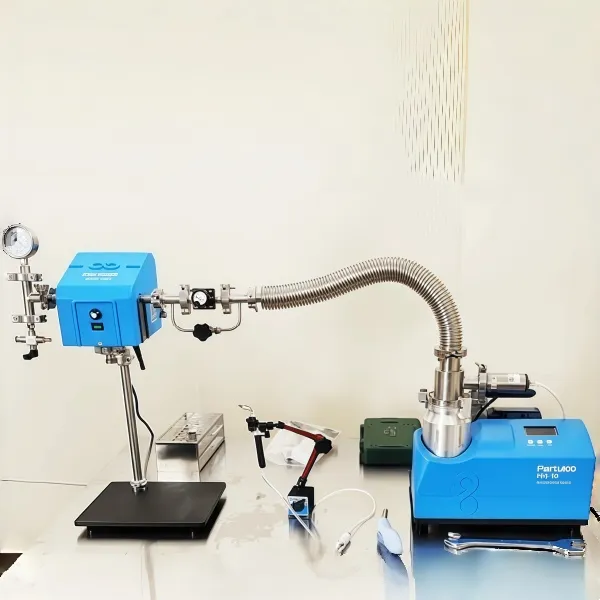

The MatMeas MRVS-1003 Rotary Vacuum Tube Sealer is engineered for high-temperature vacuum solid-state synthesis and airtight sample encapsulation under anhydrous and oxygen-free environments.
Compared with conventional vacuum tube furnace sealing, the system integrates dynamic vacuum sealing technology, enabling simultaneous rotary evacuation and high-temperature HHO flame fusion sealing. This significantly reduces raw material loss, prevents secondary contamination, and ensures ultra-high vacuum integrity for crystal growth and defect engineering.
With adjustable rotary motion, ultra-low leak rate, and high-temperature flame capability, the system provides a reliable solution for advanced material preparation workflows.
Specifications
| Workstation Configuration | Single Station |
| Ultimate Vacuum | 10-1~ 10-5 Pa (depending on selected vacuum pump system) |
| Working Vacuum | Better than 1 × 10-1Pa ~ 10-4Pa (depending on selected vacuum pump system) |
| Power Supply | 220 V, 50/60 Hz, 20 W (Main Unit) |
| Pressure Measurement Range | 10-4Pa ~ 0.1 MPa |
| Overall System Leak Rate | Better than 2 × 10-12Pa·m³/s |
| System Leak Rate | 2×10*12 Pa·m³/s |
| Rotation Speed | 0-30rpm, adjustable |
| Quartz Tube Dimensions | Outer Diameter: Φ5 – 80 mm Wall Thickness: 1 – 2 mm Length: Customizable |
| Equipment Dimensions (L×W×H) | 320 × 240 × 660 mm |
| Warranty | 1 Year |
Applications
- One-dimensional nanomaterials
- Two-dimensional layered materials
- Semiconductor and optoelectronic materials
- Battery electrode and solid-state electrolyte materials
- Thermoelectric materials and devices
- Metallic alloys and intermetallic compounds

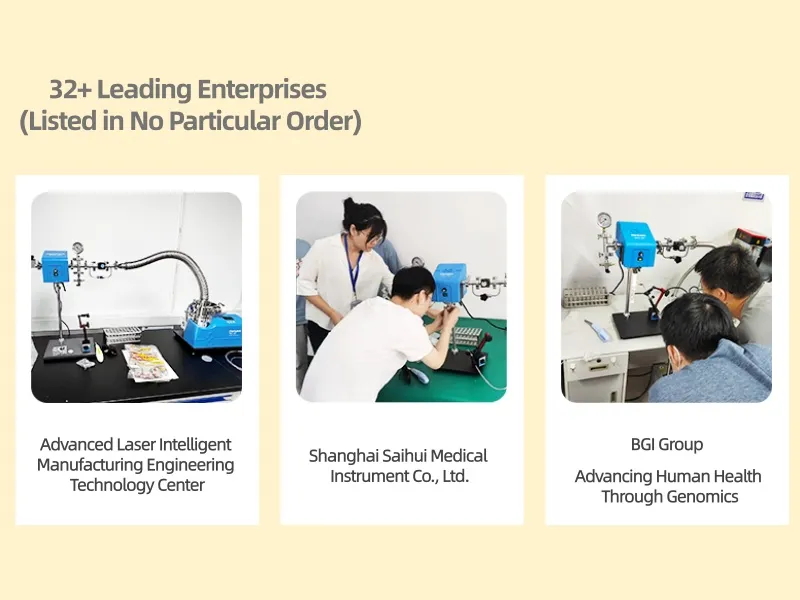

Detail Images
FAQ
What is the primary measurement principle of MRVS-1003?
MRVS-1003 is designed using advanced electrical characterization methods to measure vacuum tube sealing machine with extreme precision, eliminating lead resistance and temperature fluctuations.What sample shapes and forms are supported?
The system supports standard sample geometries including solid blocks, circular thin-sheet discs, and rectangular bars with specialized test fixtures.Does MRVS-1003 comply with international laboratory standards?
Yes, all measurements fully align with international norms such as ASTM, IEEE, and GB/T standards to deliver publishable, research-grade data.
