MatMeas High Precision Piezoelectric Analyzer – d33 d31 Measurement System — 1

Overview

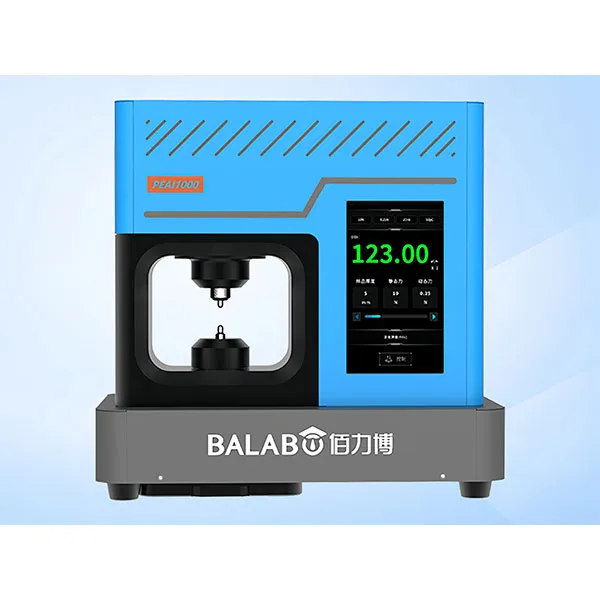

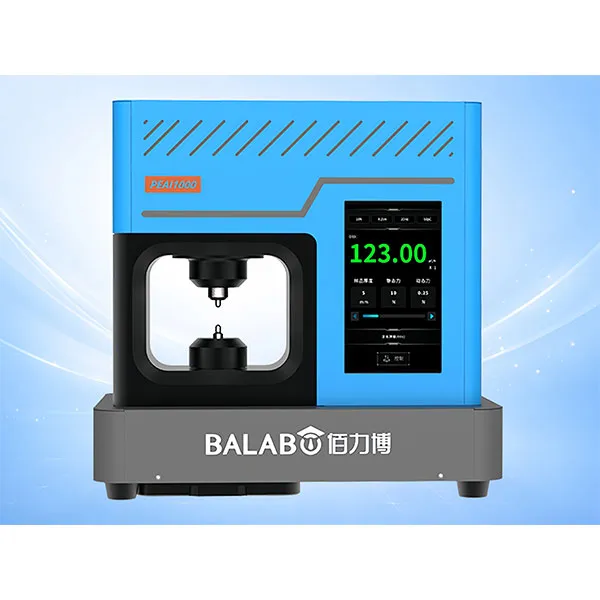

The MatMeas PEAI1000 piezoelectric analyzer is designed for precise measurement of piezoelectric coefficients including d33 and d31 using advanced dynamic measurement technology. The system integrates lock‑in amplifier signal processing to suppress noise and ensure highly stable measurement results. It is widely used in piezoelectric ceramic research, sensor development, materials science laboratories and industrial quality inspection of piezoelectric components.

Specifications

Measurement Range 0–2000 pC/N
Calibration Frequency 110 Hz
Frequency Range 110 Hz
Calibration Force 0.25 N (Typical)
Dynamic Test Force 0.1–0.5 N
Recommended Sample Size Φ ≤ 40 mm, d ≤ 20 mm
Static Clamping Force 1–10 N
Device Size 328 × 210 × 357 mm (L×W×H)
Measurement Speed Fast / Medium / Slow
Power Supply 220V ±10%, 50Hz/60Hz
Measurement Accuracy ±2%
Weight 19 Kg
Measurement Sample Bulk / Sheet / Film
Warranty 1 Year

Applications

  1. Piezoelectric material research
  2. Piezoelectric ceramic manufacturing
  3. Sensor and actuator development
  4. Aerospace materials testing
  5. Semiconductor and electronic component laboratories

More Details

  1. PEAI1000 Piezoelectric Analyzer Features

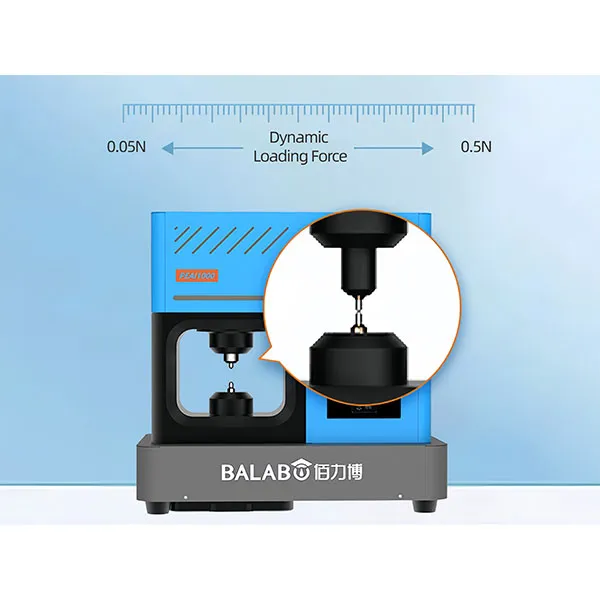

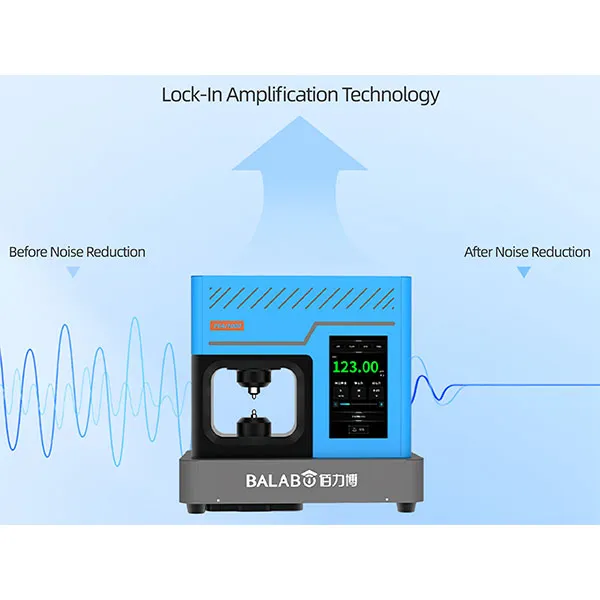

    Dynamic measurement method ensures high accuracy. Lock-in amplifier technology improves signal detection and reduces environmental noise. Integrated mechanical fixture applies consistent dynamic force from 0.05N to 0.5N for reliable measurements.
  2. PEAI1000 Piezoelectric Analyzer Specifications
    Measurement range 0–2000 pC/N, frequency 110 Hz, measurement accuracy ±2%, sample size Φ < 40 mm thickness < 20 mm, power supply 220V 50–60Hz.

FAQ

  • How does the PEAI-1000 ensure accurate measurement under high-noise environments?

    The system integrates an advanced lock-in amplification technology that greatly suppresses useless background noise and improves the signal-to-noise ratio. It operates at a precise 110 Hz calibration frequency, delivering highly reliable data compared to traditional d33 meters.

  • What are the sample size limitations and applied test forces?

    The PEAI-1000 accommodates piezoelectric bulk, sheet, or film samples with diameters up to 40 mm and thicknesses up to 20 mm. The integrated fixture can simultaneously apply a variable static clamping force of 1–10 N and a highly consistent dynamic test force ranging from 0.1 to 0.5 N.

  • Is the PEAI-1000 suitable for high-throughput industrial quality control?

    Yes. With a wide measurement range of 0–2000 pC/N, guaranteed ±2% accuracy, and adjustable measurement speeds (Fast, Medium, Slow), the analyzer fully supports the rigorous standards and rapid testing required for industrial piezoelectric component manufacturing. Furthermore, it comes with an RS232 USB interface for one-click data export.
