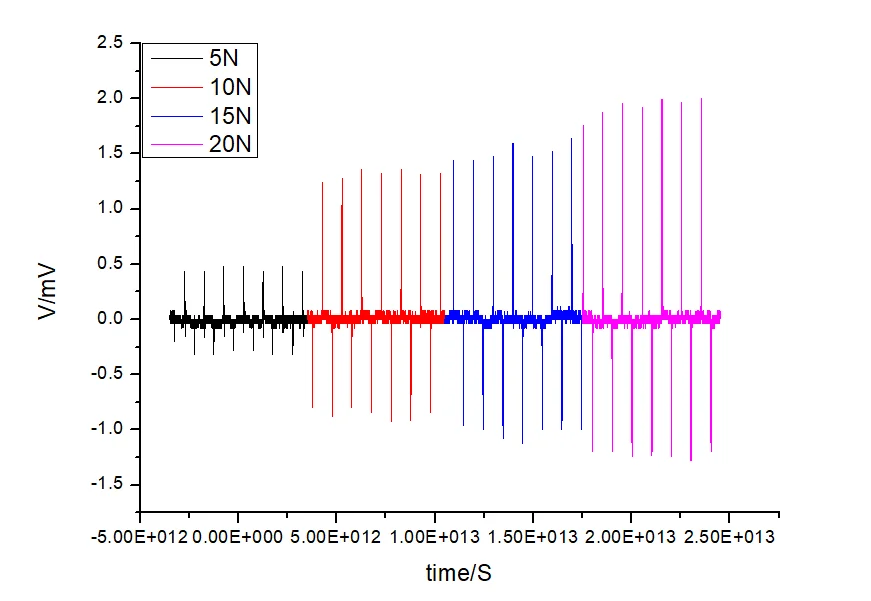

Cyclic-Force Open-Circuit Voltage Testing of Piezoelectric Films

Cyclic-force testing evaluates how consistently a piezoelectric film converts repeated mechanical loading into electrical output. Open-circuit voltage is useful for sensors and energy-harvesting studies, but it depends on the complete electromechanical system, including specimen capacitance, input impedance, loading waveform, contacts, and cabling. It should not be treated as an intrinsic material constant.

Define the mechanical input

Specify force amplitude, preload, frequency, waveform, loading area, alignment, and cycle count. The fixture should prevent slip and bending unless flexural loading is intentional. A force sensor located close to the specimen provides a more reliable input measurement than actuator displacement alone.

Define the electrical boundary condition

An open-circuit measurement requires instrument input impedance high enough that charge leakage during a cycle is negligible. Cable capacitance and oscilloscope or amplifier input capacitance can reduce the observed voltage. Report the measurement bandwidth, input impedance, capacitance, grounding scheme, and whether peak, peak-to-peak, or RMS voltage is used.

Fatigue and drift

Track output amplitude, phase, waveform shape, baseline drift, and mechanical force throughout the test. A falling voltage can result from material fatigue, depoling, electrode cracking, contact motion, fixture relaxation, temperature rise, or changing humidity. Periodic reference measurements and post-test inspection help separate these mechanisms.

Complementary measurements

Short-circuit current, transferred charge, d33, capacitance, dielectric loss, and polarization measurements can provide a more complete diagnosis. Energy-harvesting claims require a defined electrical load and delivered power; open-circuit voltage alone cannot establish usable power output.

For reproducible comparison, condition specimens consistently and report geometry, electrode structure, poling history, environment, force profile, electronics, and cycle count. The goal is to connect electrical change to a controlled mechanical history.

Choose equipment for cyclic piezoelectric measurements

The PEMS-1000 in-situ d33 system supports controlled dynamic excitation from 30 to 300 Hz and selectable response modes for tracking piezoelectric behavior. The PEAI1000 piezoelectric analyzer provides adjustable static and dynamic force with a 0–2000 pC/N d33 range. Match the fixture, force waveform, cycle program, electrical boundary condition, and expected signal to the selected system.
