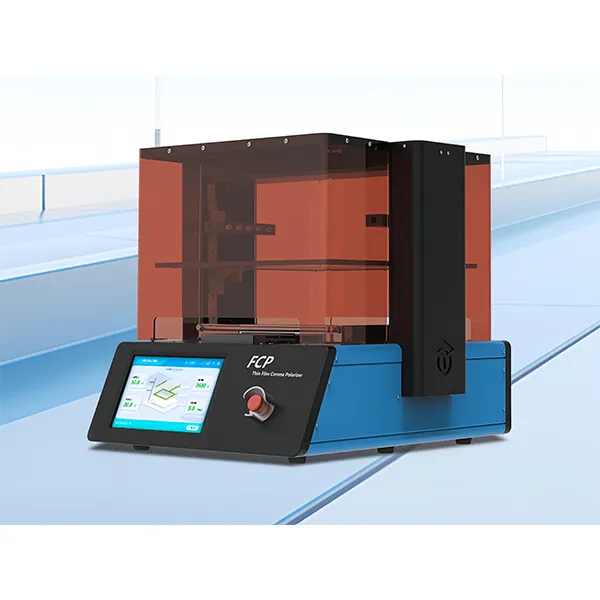

MatMeas FCP High Voltage Film Corona Poling System — 1

Overview

MatMeas FCP Series Film Corona Poling System, specifically engineered for laboratory-scale production of piezoelectric polymer films. This advanced system utilizes corona discharge to align dipoles in thin film materials, achieving optimal piezoelectric properties through precise control of voltage, temperature, and process monitoring. It integrates a 30kV high-voltage module, a PID-controlled heating stage (up to 180℃), and sensitive current measurement (≥100nA) to enable researchers to fine-tune poling parameters. The FCP system is widely used in R&D labs developing sensors, energy harvesters, acoustic devices, and aerospace components, offering a reliable and efficient solution for thin film poling.

Specifications

Parameter Value
Polarization Method Corona Poling
Number of sample 1pc
Polarization Voltage 30 kV
Polarization Current 1mA
Temperature Range ≤180℃
Temperature Accuracy accuracy ±3°C
Heating Rate Slopes 3/6/9°C per min
Temperature Control PID Precision Control
Minimum Detectable Current 100nA above
Voltage output accuracy 5%
Sample material Thin Film
Sample Size 148mm × 210mm (A5 size)
Equipment size 458 × 505 × 450 mm （L x W x H)
Power Supply 220V / 50–60Hz,  600W
Weight 32kg
Warranty 1 Year
*For negative corona poling requirements, please contact us.

Applications

  1. Sensors & Actuators
  2. Energy Harvesting & Storage
  3. Acoustic Technology
  4. Aerospace & Defense
  5. Medical Devices

FAQ

  • What is the primary measurement principle of M?

    M is designed using advanced electrical characterization methods to measure piezoelectric poling system with extreme precision, eliminating lead resistance and temperature fluctuations.

  • What sample shapes and forms are supported?

    The system supports standard sample geometries including solid blocks, circular thin-sheet discs, and rectangular bars with specialized test fixtures.

  • Does M comply with international laboratory standards?

    Yes, all measurements fully align with international norms such as ASTM, IEEE, and GB/T standards to deliver publishable, research-grade data.
