Overview

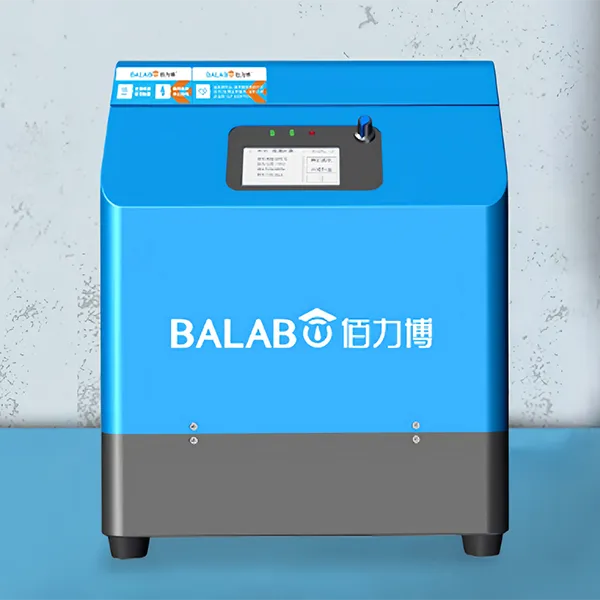

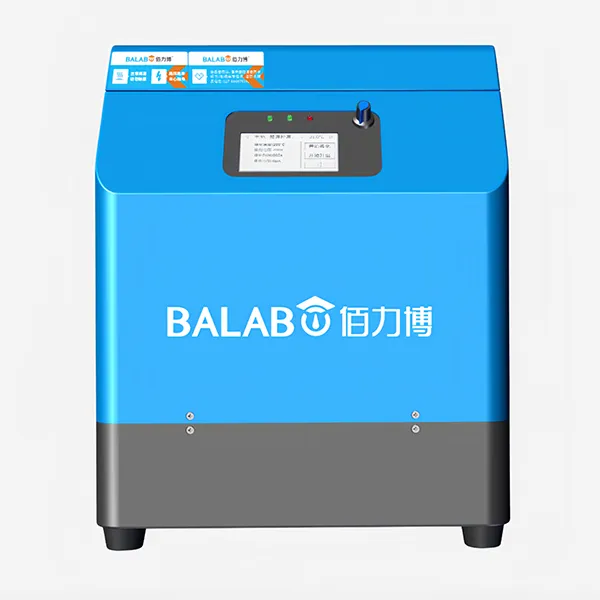

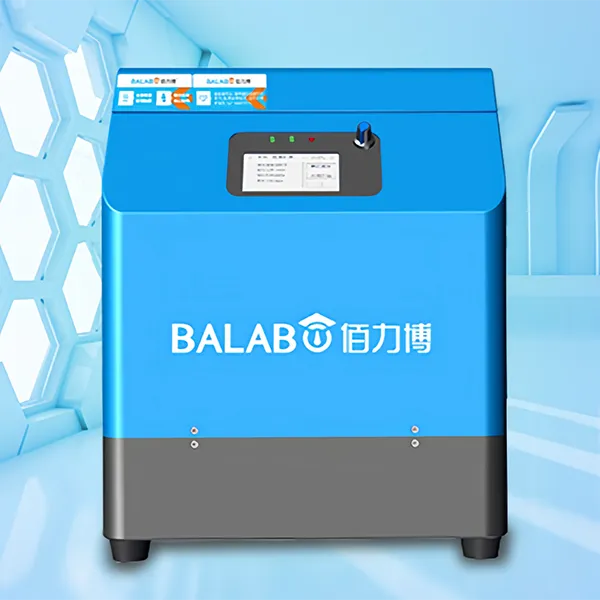

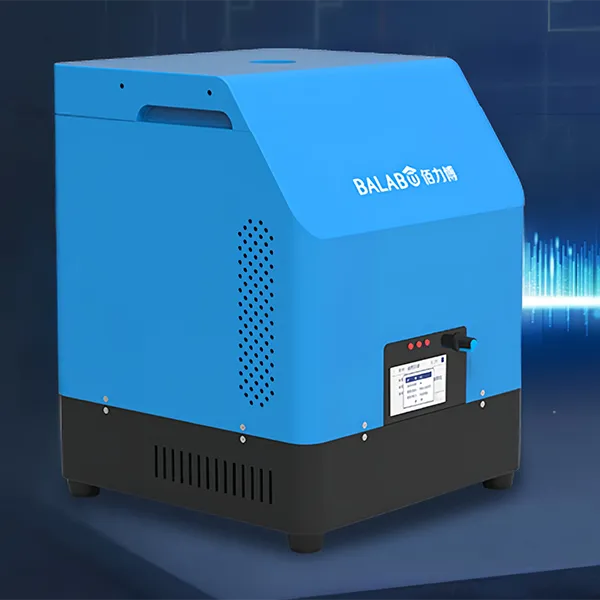

The MatMeas TPD system is designed for high temperature polarization of functional materials such as piezoelectric and ferroelectric ceramics. It provides stable high voltage output and precise temperature control to ensure reliable polarization results. The system is suitable for laboratory research, material development, and industrial applications.
Specifications
| Channel | Single Channel |
| Function | High Temperature Polarization |
| Application | Material polarization |
| Voltage Output | High Voltage |
| Temperature Control | Precise control |
| Brand | MatMeas |
FAQ
What is the primary measurement principle of M?
M is designed using advanced electrical characterization methods to measure piezoelectric poling system with extreme precision, eliminating lead resistance and temperature fluctuations.What sample shapes and forms are supported?
The system supports standard sample geometries including solid blocks, circular thin-sheet discs, and rectangular bars with specialized test fixtures.Does M comply with international laboratory standards?
Yes, all measurements fully align with international norms such as ASTM, IEEE, and GB/T standards to deliver publishable, research-grade data.
