M Piezoelectric Poling System

Name: M Piezoelectric Poling System
Brand: MatMeas

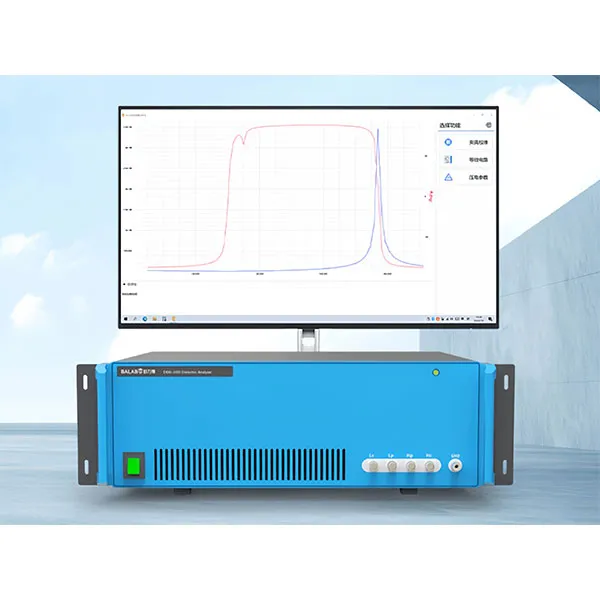

MatMeas High Precision Piezoelectric Ceramic Parameter Analyzer PCA1000 — 1

Overview

The PCA1000 Piezoelectric Ceramic Parameter Analyzer from MatMeas is designed to evaluate the comprehensive performance parameters of piezoelectric ceramics using resonance analysis technology. The system enables fast and intuitive measurement of dielectric constants, mechanical quality factors, electromechanical coupling coefficients and frequency characteristics. It is widely used in research laboratories and industrial production lines to analyze piezoelectric materials, improve product quality and accelerate material development.

Specifications

Parameter	Value
Dielectric Parameters	Z, θ, C, D, ε’, ε”, tgδ, Z’, Z”, Cole‑Cole
Piezoelectric Parameters	kp, kt, k31, k33, Qm, d31, d33, d15
Characteristic Frequencies	fr, fa, fs, fp, fm, fn
Equivalent Circuit	C0, C1, R1, L1
Frequency Range	20 Hz – 10 MHz
Measurement Accuracy	±0.05 %
Sample Size	φ ≤ 20 mm, thickness ≤ 5 mm
Instrument Dimensions	340 × 336 × 147 mm
Power Supply	220 V / 50–60 Hz
Weight	3 kg
Warranty	1 Year

Applications

Piezoelectric ceramic material research
Ferroelectric and dielectric material testing
Electronic component development
University and research institute laboratories
Industrial quality control of piezoelectric components

More Details

PCA1000 Analyzer Features
The PCA1000 system integrates measurement fixtures, data acquisition and analysis software into a single platform. It allows researchers to quickly obtain key dielectric and piezoelectric parameters of ceramic materials.

PCA1000 Intelligent Sweep Technology
The analyzer performs intelligent frequency sweeping to obtain impedance spectra and dielectric spectra. This helps engineers evaluate resonance characteristics and optimize piezoelectric material performance.

PCA1000 Visualization and Data Analysis
The software interface displays real‑time curves, Cole‑Cole plots and equivalent circuit models, enabling efficient interpretation of measurement results.
