Overview

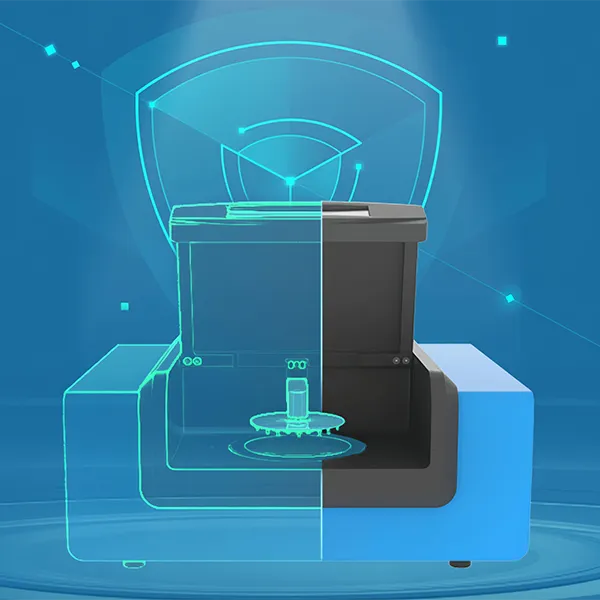

MatMeas SPD20KVPOS Corona High Voltage Poling System is a high-precision poling equipment designed for piezoelectric ceramics and functional thin film materials. The system integrates intelligent monitoring, real-time visualization, safety interlock protection and automatic breakdown shutdown, making it ideal for laboratory teaching and research applications.
Specifications
| Parameter | Value |
| Polarization mode | air corona |
| Number of sample | 1pc |
| Poling Voltage | 0–20 kV |
| Poling Current | 1mA |
| Temperature Range | RT – 180°C |
| Temperature Accuracy accuracy | ±3°C |
| Heating Rate | 3/6/9°C per min |
| Temperature Control | PID Precision Control |
| Minimum Detectable Current | above 100nA level |
| Voltage output accuracy | 5% |
| Sample material | film/ bulk sample |
| Sample Size | φ≤50mm, Thickness ≤10mm |
| Equipment size | 350×300× 160 mm （L x W x H) |
| Power Supply | 220V / 50–60Hz, 300W |
| Weight | Approx. 12 kg |
| Warranty | 1 Year |
Applications
- Piezoelectric Ceramic Manufacturing
- Functional Thin Film Poling
- Electret Material Preparation
- Polymer Functional Modification
- Academic & Research Applications
Video
FAQ
What is the primary measurement principle of M?
M is designed using advanced electrical characterization methods to measure piezoelectric poling system with extreme precision, eliminating lead resistance and temperature fluctuations.What sample shapes and forms are supported?
The system supports standard sample geometries including solid blocks, circular thin-sheet discs, and rectangular bars with specialized test fixtures.Does M comply with international laboratory standards?
Yes, all measurements fully align with international norms such as ASTM, IEEE, and GB/T standards to deliver publishable, research-grade data.
