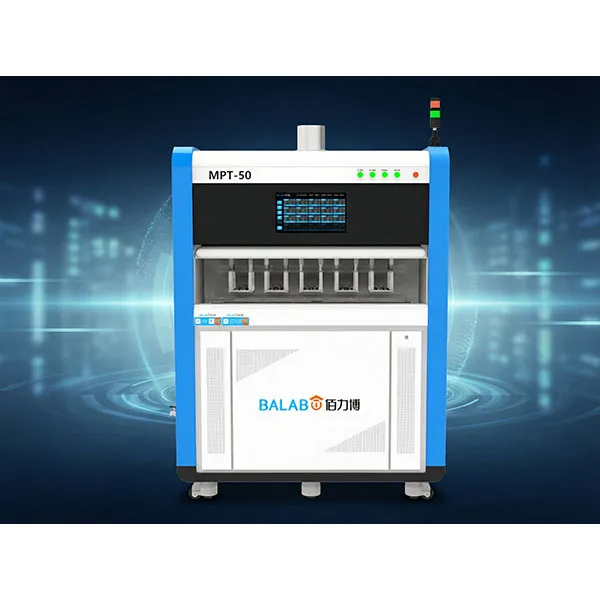

MatMeas Automatic High Voltage Polarization System for Piezoelectric Ceramics – MPT Series — 1

Overview

The MPT Series High Voltage Polarization System from MatMeas is designed for automatic polarization of piezoelectric ceramic materials. The system integrates intelligent control, multi‑channel independent polarization and precise temperature management to ensure stable experimental conditions. It enables researchers and manufacturers to efficiently determine optimal polarization parameters while improving production efficiency and safety. This equipment is widely used in materials science laboratories, piezoelectric ceramic research institutes and electronic component manufacturing facilities.

Specifications

Parameter Value
Polarization Method Oil Bath Polarization
Sample Capacity 0–100 Samples
Polarization Voltage Up to 10 kV
Polarization Current 1 mA per channel maximum
Voltage Output Accuracy ±5 %
Minimum Detection Current ≥100 nA
Temperature Range RT – 180 °C
Temperature Control Accuracy ±3 °C
Temperature Control Method PID Precision Temperature Control
Heating Rate 3°C/min, 6°C/min, 9°C/min
Sample Material Bulk or Thin Film Piezoelectric Ceramics
Sample Size Diameter <10 mm, Thickness <3 mm
Equipment Dimensions 1420 × 558 × 2041 mm
Power Supply 220 V / 50–60 Hz, 3800 W
Weight 447 kg
Warranty 1 Year

Applications

  1. Piezoelectric ceramic polarization research
  2. Ferroelectric material development
  3. Electronic component manufacturing
  4. Materials science laboratories
  5. University and research institute experiments

MPT Polarization System Features

The MPT intelligent high voltage polarization system supports automatic multi‑channel polarization of piezoelectric ceramic samples. Each channel operates independently, allowing simultaneous polarization of multiple samples without interference.

MPT Safety Protection Technology

The system integrates advanced safety interlock mechanisms, breakdown protection and automatic self‑inspection. Before the polarization process starts, the system performs a safety check to ensure safe operation for both operators and equipment.

MPT Intelligent Control System

Researchers can monitor polarization voltage, polarization current, temperature and processing time in real time through the intelligent control interface. All polarization data and process parameters are automatically recorded for further analysis and optimization.

FAQ

  • What is the primary measurement principle of M?

    M is designed using advanced electrical characterization methods to measure piezoelectric poling system with extreme precision, eliminating lead resistance and temperature fluctuations.

  • What sample shapes and forms are supported?

    The system supports standard sample geometries including solid blocks, circular thin-sheet discs, and rectangular bars with specialized test fixtures.

  • Does M comply with international laboratory standards?

    Yes, all measurements fully align with international norms such as ASTM, IEEE, and GB/T standards to deliver publishable, research-grade data.
