MatMeas Delivers MRVS-1003 Vacuum Sealing System to New York University Abu Dhabi (NYUAD)

Abu Dhabi, UAE / Wuhan, China — April 2026 — MatMeas is proud to announce the successful dispatch and delivery milestone of our flagship MRVS-1003 Rotary Quartz Tube Vacuum Sealing System to New York University Abu Dhabi (NYUAD) in the United Arab Emirates. The system will support advanced investigations into organic functional materials, radical chemistry, and electron paramagnetic resonance (EPR) spectroscopy at NYUAD's state-of-the-art research laboratories.

🔬 The Scientific Challenge: Sealing Small Quartz Tubes with Organic Solutions

Preparing air-sensitive organic compounds and persistent free radicals for Electron Paramagnetic Resonance (EPR) analysis requires defect-free, hermetic vacuum encapsulation. Atmospheric oxygen is paramagnetic and causes intense spectral line broadening, which masks the subtle hyperfine splitting structures vital to radical characterization.

However, encapsulating organic compounds in quartz tubes presents distinct technical challenges compared to standard inorganic solid-state synthesis:

• Quartz Tube Geometry & Dimensions: EPR spectrometers require narrow-bore quartz tubes with outer diameters (OD) of 2 mm, 3 mm, 4 mm, or 5 mm, lengths of 150 mm or 250 mm, and wall thicknesses between 0.5 mm and 0.8 mm. Under uneven manual heating, these thin quartz walls can deform or collapse irregularly.
• Volatile Organic Solvents: The materials to be sealed are primarily organic compounds in the form of powder or liquid solutions (using organic solvents or water). Unthrottled vacuum evacuation can lead to solvent boiling or vapor surges into the vacuum line.
• Precise Sealing Temperature Window: Dynamic fusion of quartz tubes requires a controlled working temperature of 1100°C – 1200°C to soften and neck down the quartz wall smoothly without causing thermal decomposition of the organic sample.

⚙️ Tailored Engineering Configuration for NYUAD

Following in-depth technical consultation regarding NYUAD's sample parameters, the system was configured specifically for their workflow requirements:

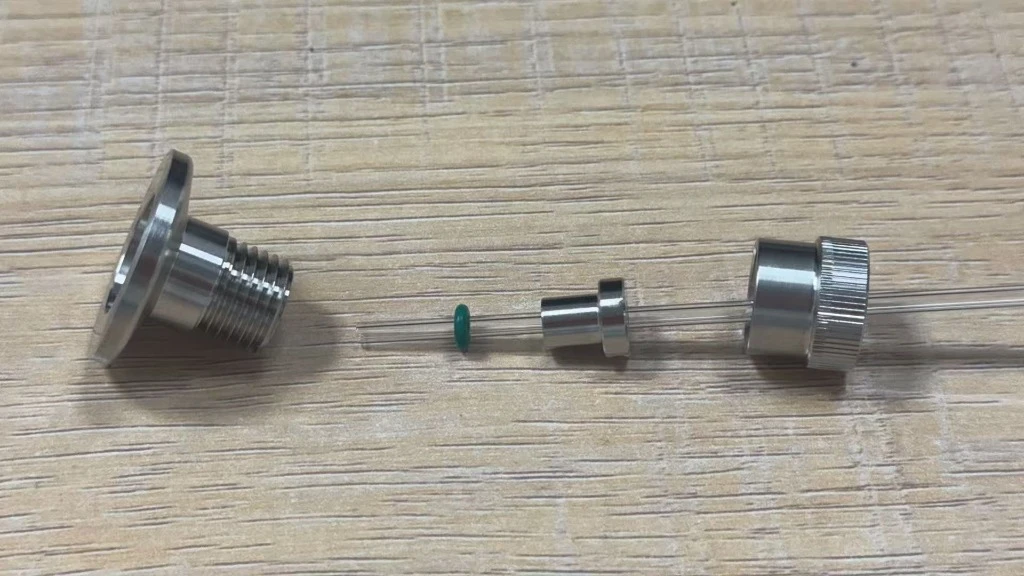

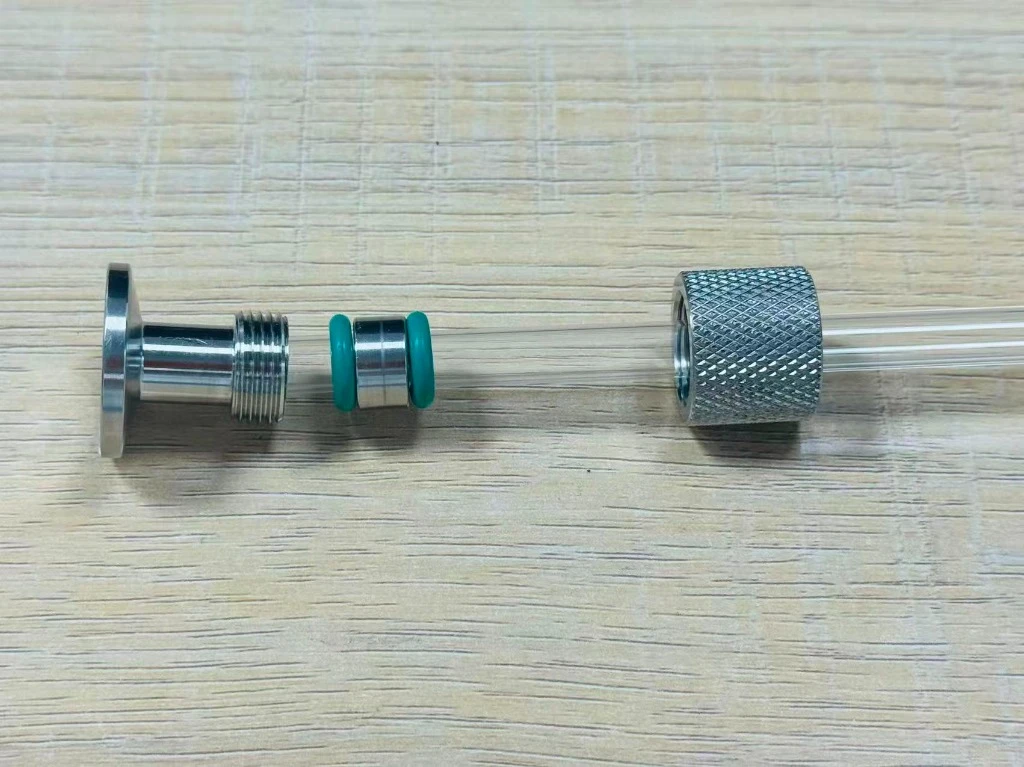

1. Dynamic Concentric Rotation (0–35 rpm) with Custom Quartz Tube Adapters

The MRVS-1003 utilizes proprietary magnetic fluid dynamic vacuum sealing. Unlike static manual sealing, the motorized chuck rotates the 2–5 mm quartz tube continuously while sustaining high vacuum integrity (≤ 2 × 10⁻¹² Pa·m³/s). This guarantees uniform 360° radial heat absorption from the flame, allowing the quartz wall to soften concentrically at 1100°C – 1200°C and collapse into a solid, hermetic pinch-off without voids or asymmetric thinning.

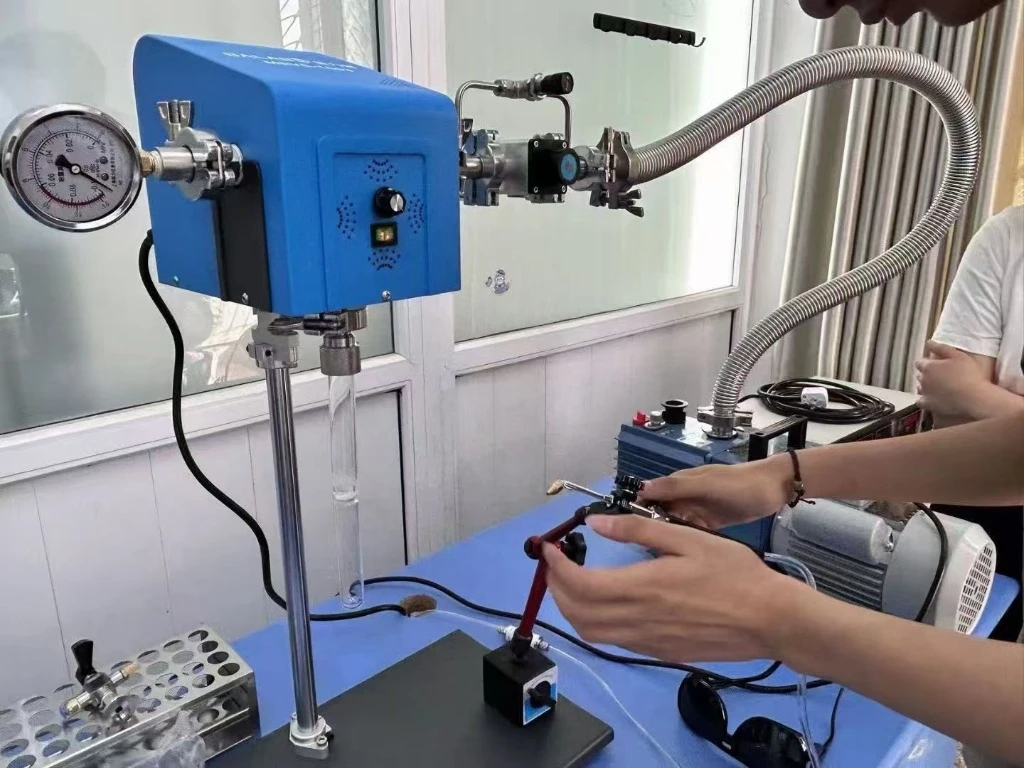

Figure 3: Quality verification and operational flame-sealing test of the MatMeas MRVS-1003 system prior to shipment, showing dynamic quartz tube rotation, vacuum line connection, and pinpoint torch alignment.

2. Dedicated Mechanical Pump Configuration (Base Vacuum: 10 Pa)

The NYUAD setup is paired with a heavy-duty dual-stage rotary vane mechanical vacuum pump delivering a base vacuum of 10 Pa. For handling organic solutions and volatile solvent systems, the mechanical pump provides robust, reliable evacuation while remaining resilient against solvent vapor backstreaming.

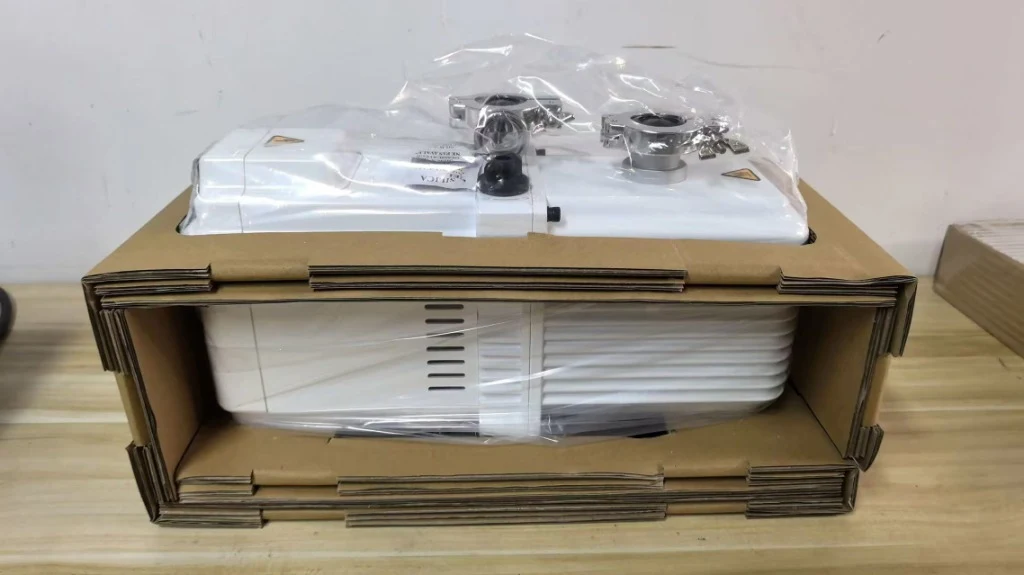

Figure 4: Factory packaging of the high-durability mechanical rotary vacuum pump (base vacuum 10 Pa) complete with KF quick-release clamps and centering rings.

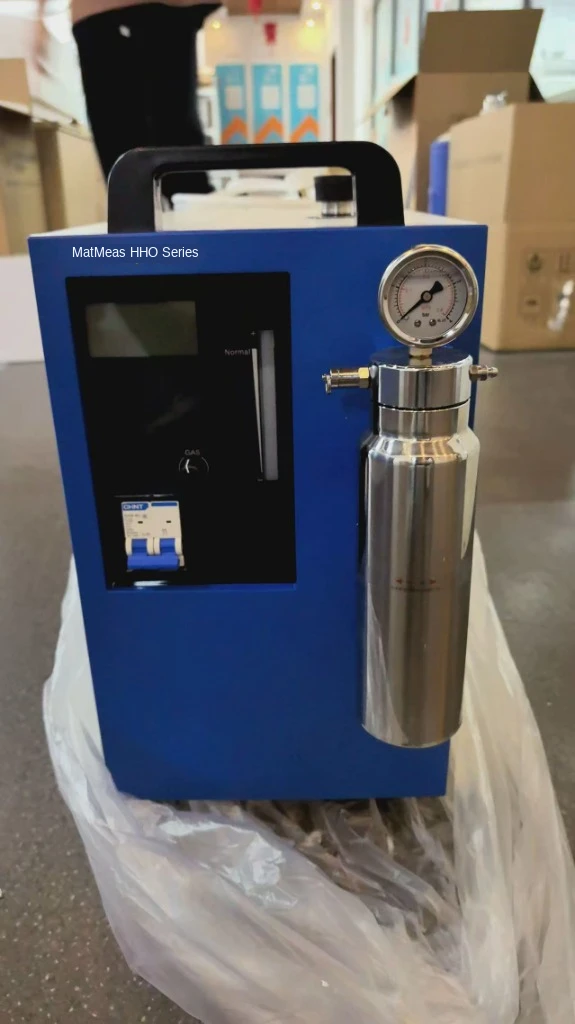

3. Safe, Cylinder-Free Water-Electrolysis HHO Flame Generator

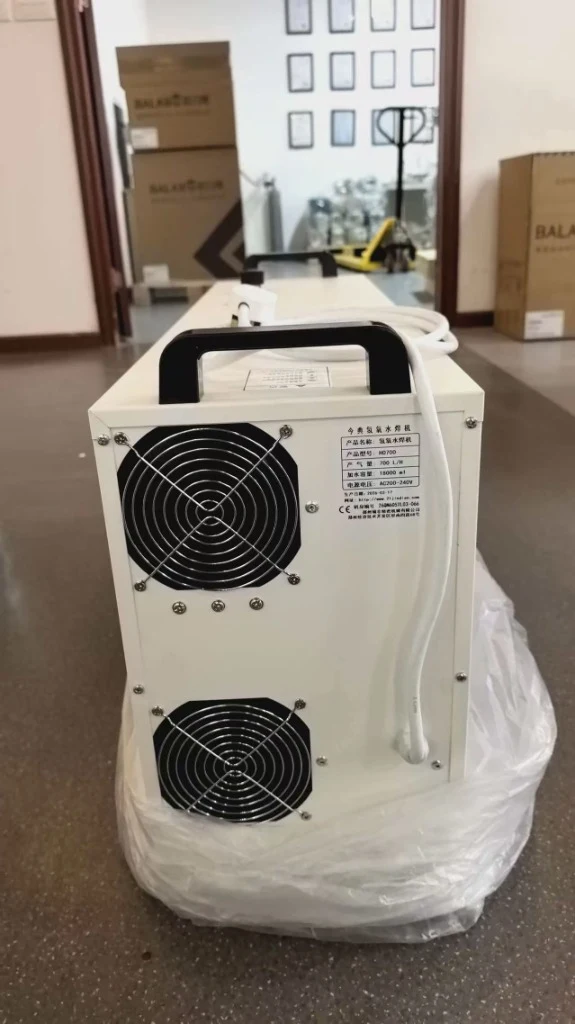

To safely achieve the 1100°C – 1200°C quartz sealing temperature without storing hazardous bottled gases, the system integrates a MatMeas HHO water-electrolysis flame generator. The unit produces high-purity hydrogen and oxygen on-demand, generating up to 700 L/H with zero stored flammable gas and only pure water vapor as a combustion byproduct, ensuring full compliance with international laboratory safety and EHS regulations.

🌐 Expanding Global Academic Partnerships

This deployment to New York University Abu Dhabi further cements MatMeas's growing footprint in premier international research hubs across North America, Europe, East Asia, and the Middle East. With over 500 validated installations across institutions such as NTU Singapore, Australian National University (ANU), and the Chinese Academy of Sciences (CAS), MatMeas continues to deliver engineer-to-engineer precision instrumentation trusted by the world's most demanding researchers.

For technical inquiries or customized quotations on our MRVS series vacuum sealing machines, please explore our MRVS-1003 product specifications or submit an inquiry through our technical contact portal.
