Turnkey MRVS-1003 New York University Abu Dhabi Vacuum Sealing System Deployment

Client Background & Institutional Imperative

New York University Abu Dhabi (NYUAD) stands as a premier global research university and portal campus in the United Arab Emirates, renowned for its state-of-the-art laboratories in materials chemistry, condensed matter physics, and energy storage. Within its chemistry and functional materials research groups, scientists investigate air-sensitive organic functional materials, persistent free radicals, and reactive catalytic intermediates using Electron Paramagnetic Resonance (EPR) spectroscopy.

Because ground-state molecular oxygen is paramagnetic (S = 1), its presence in sample solutions causes severe spin-spin dipole broadening, obscuring the delicate hyperfine splitting constants required to identify molecular radical centers. Preparing high-resolution, publication-grade EPR samples demands that reaction mixtures be hermetically encapsulated into evacuated synthetic quartz ampoules under high vacuum without oxygen or atmospheric moisture contamination.

The Engineering Challenge: Narrow-Bore Quartz Ampoules with Volatile Solvents

While sealing standard industrial quartz tubes (OD 15–45 mm) for solid-state crystal growth is well-established, vacuum-sealing narrow-bore quartz tubes (2 mm, 3 mm, 4 mm, and 5 mm OD with 0.5–0.8 mm wall thickness) containing organic solutions presents extreme physical constraints:

• Asymmetrical Wall Collapse: In manual sealing, uneven hand rotation softens one side of the fragile tube faster than the other; atmospheric pressure immediately indents the molten quartz, creating pinch-off distortions, gas pockets, and pinholes.
• Solvent Vapor Backstreaming & Vacuum Contamination: Samples frequently reside in volatile organic solvents (such as toluene, tetrahydrofuran, or acetonitrile). Traditional turbomolecular pumps risk catastrophic damage from solvent vapor backstreaming. The system required a rugged, dedicated mechanical rotary pump achieving approximately 10 Pa base vacuum while isolating vapors safely.
• Strict Flame Temperature Window: Quartz fusion requires bringing the glass to its 1100°C–1200°C softening zone. An uncontrolled heat source risks thermal degradation of delicate organic radical samples, while insufficient heat leaves stress micro-fractures that fail during cryogenic EPR measurements.

Part 1: The Turnkey MRVS-1003 High-Vacuum Sealing Workstation

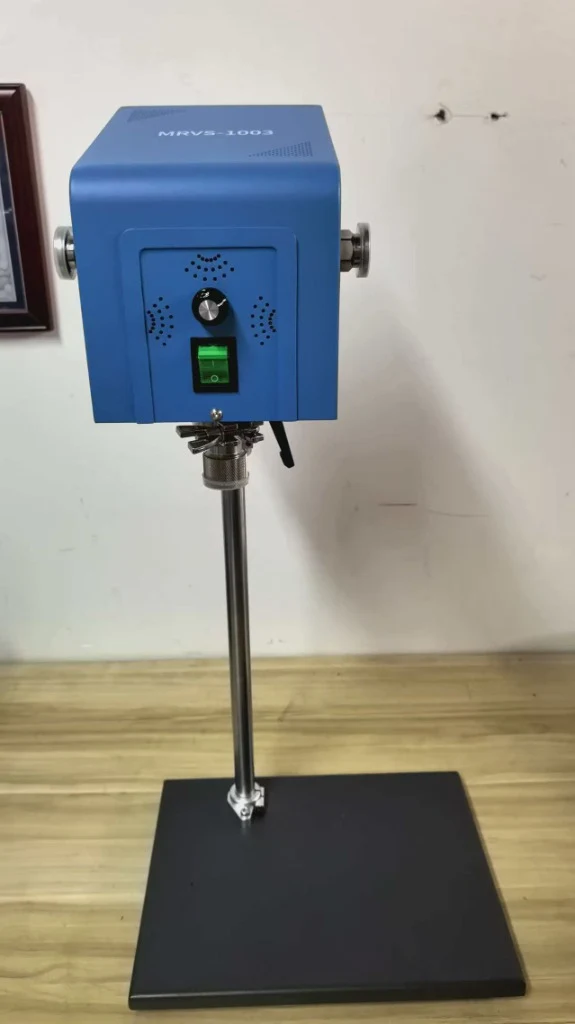

To eliminate these pain points, MatMeas configured and dispatched a comprehensive, ready-to-run sealing platform centered around the flagship MRVS-1003 Rotary Quartz Tube Vacuum Sealing System:

• Magnetic Fluid Dynamic Rotary Chuck: Provides motorized, vibration-free rotation at 0–35 rpm while maintaining high-vacuum hermeticity (dynamic helium leak rate ≤ 2 × 10⁻¹² Pa·m³/s). Uniform 360° radial heating collapses the tube wall concentrically into a solid, hermetic pinch-off without voids or asymmetric thinning.

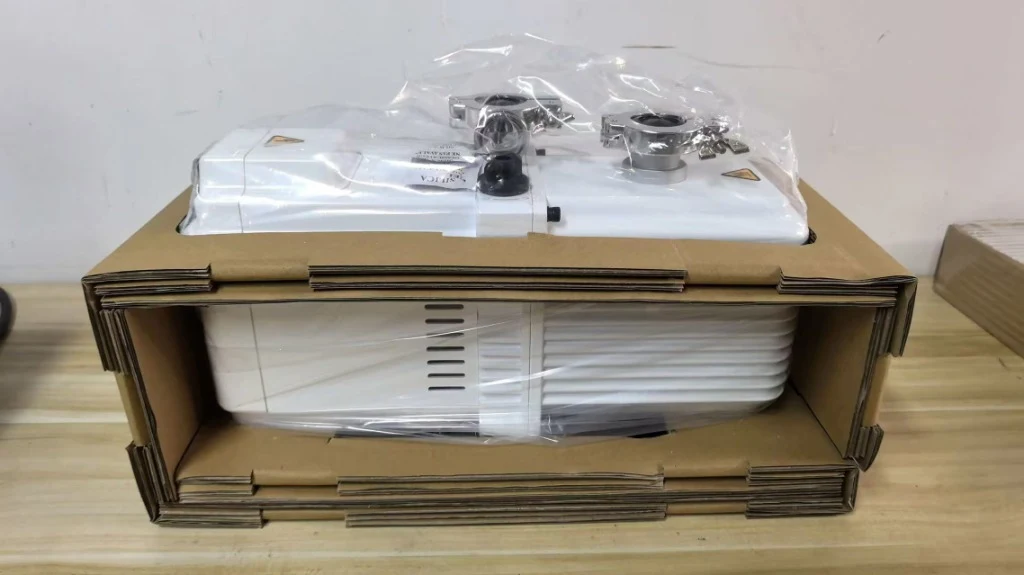

• 10 Pa Mechanical Vacuum Pump System: Paired with an oil-mist-filtered dual-stage rotary vane mechanical pump, offering robust solvent resilience and high pumping speed for rapid evacuation down to approximately 10 Pa.

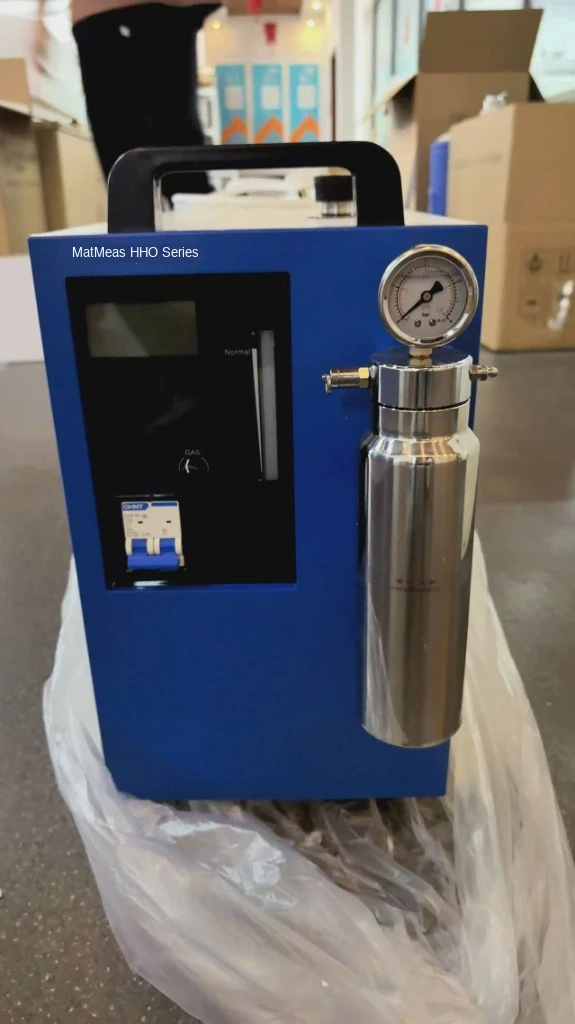

• Cylinder-Free HHO Water-Electrolysis Micro-Torch: Generates a clean, controllable oxyhydrogen flame on-demand from pure water, reaching peak flame temperatures up to 2800°C with 700 L/h gas output. The concentrated micro-torch instantly establishes the 1100°C–1200°C quartz softening window, eliminating the safety hazards of storing high-pressure compressed hydrogen cylinders in academic buildings.

Part 2: Custom Quartzware Ecosystem, 4VC/5VC Couplings & Consumable Lifecycle

A critical differentiator of the NYUAD project was that MatMeas did not supply the sealing machine in isolation. Because researchers require exact dimensional compatibility between their spectrometer sample cavities, vacuum manifolds, and sealing chucks, MatMeas engineered and delivered a matched quartzware and tooling package:

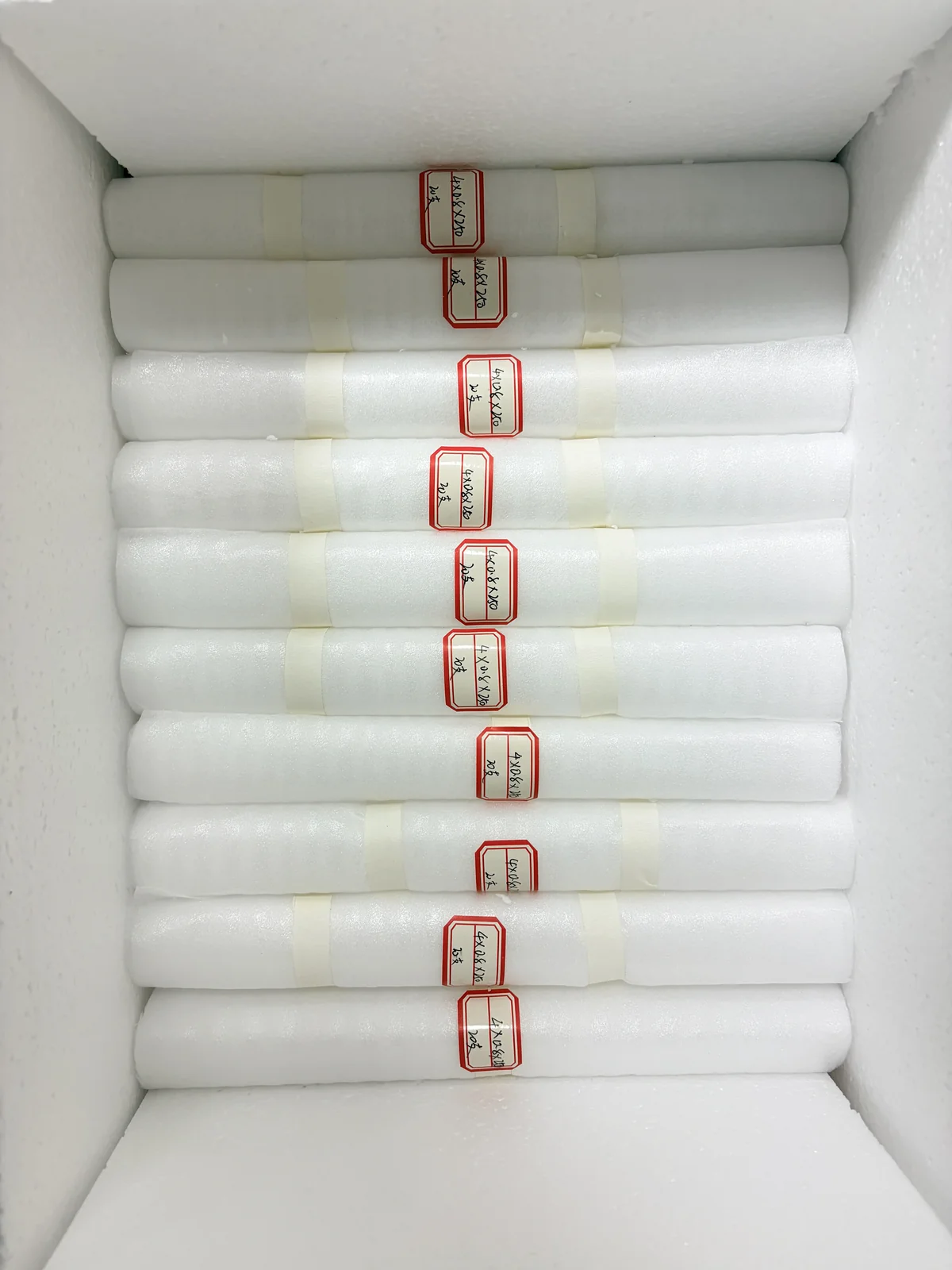

1. Semiconductor-Grade Fused Quartz Ampoules: Batch-inspected optical fused silica tubes (High-Purity Fused Quartz & Crucible Labware, SiO₂ ≥ 99.99%) with laser-calibrated OD tolerances within ±0.05 mm across OD 2 mm, 3 mm, 4 mm, and 5 mm specifications.

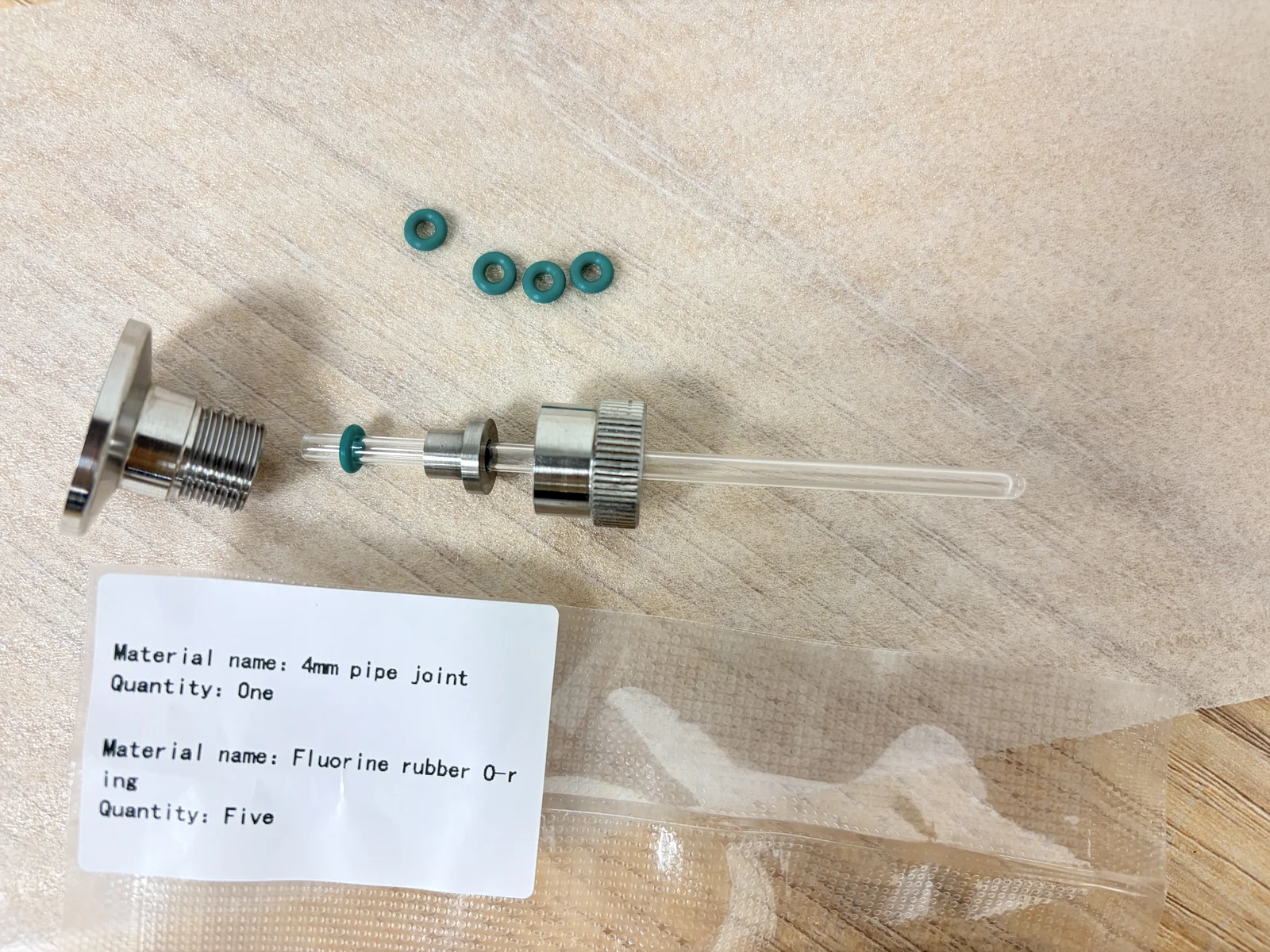

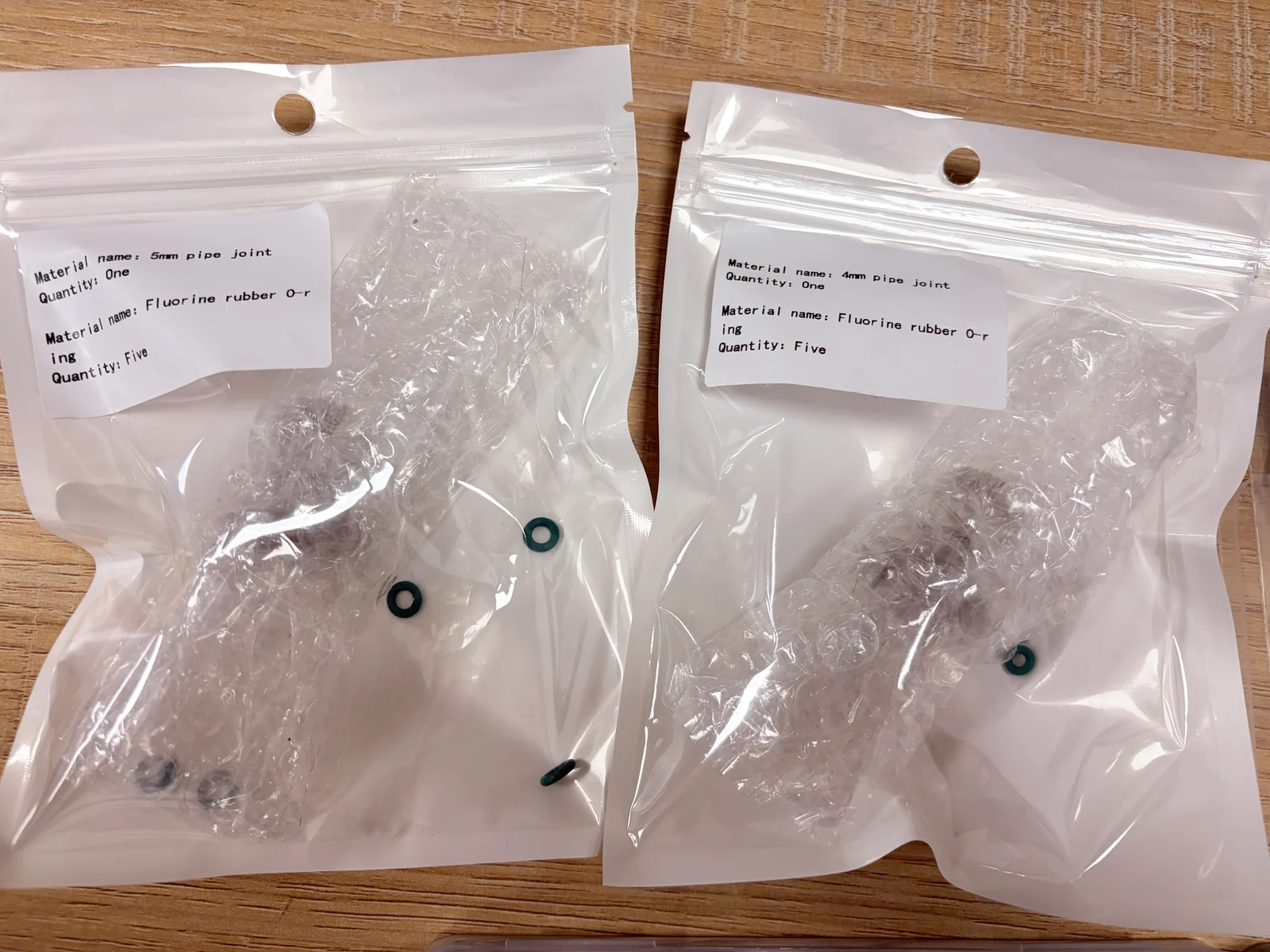

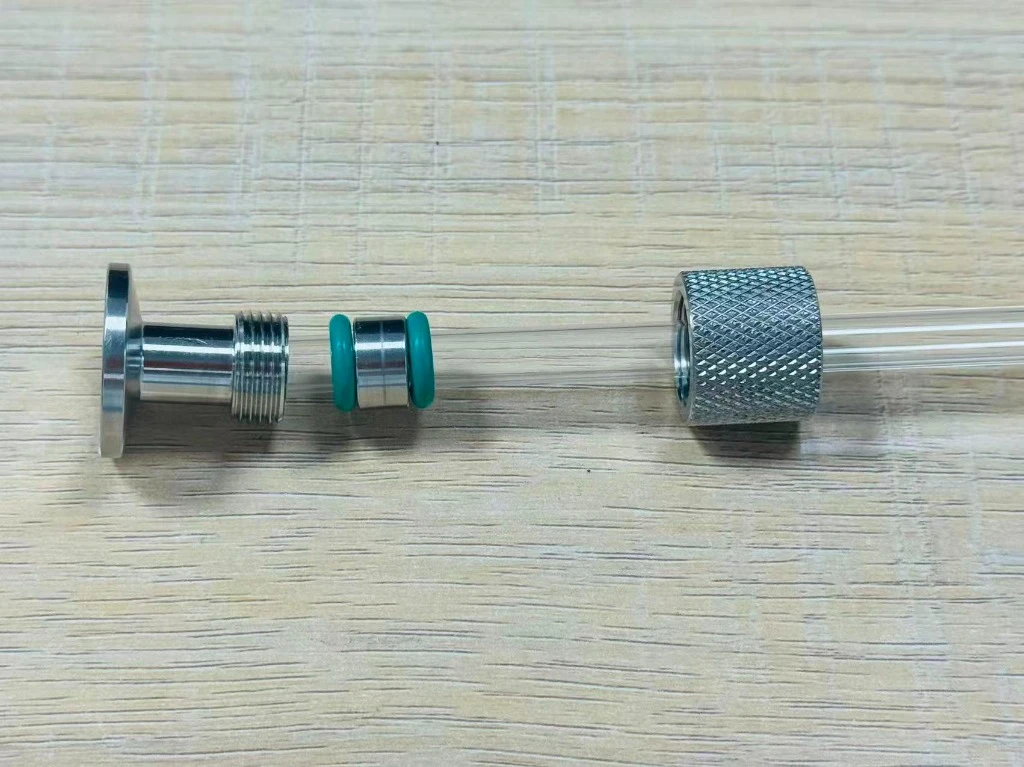

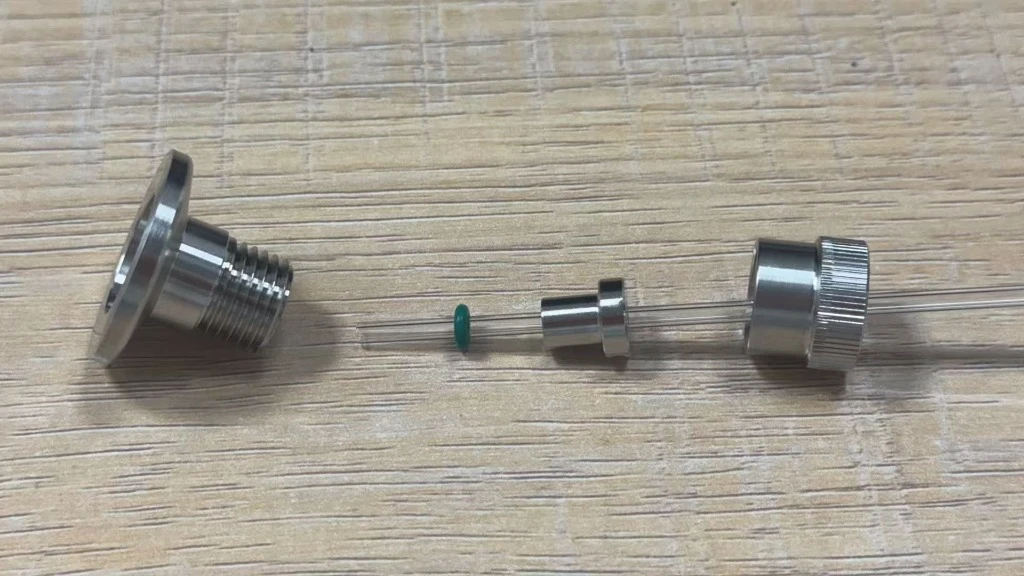

2. Proprietary 4VC & 5VC Quick Vacuum Joints: Precision-machined stainless steel and brass quick couplings allowing researchers to insert, seal, and evacuate narrow sample ampoules in seconds without vacuum grease, preventing hydrocarbon contamination of delicate radical solutions.

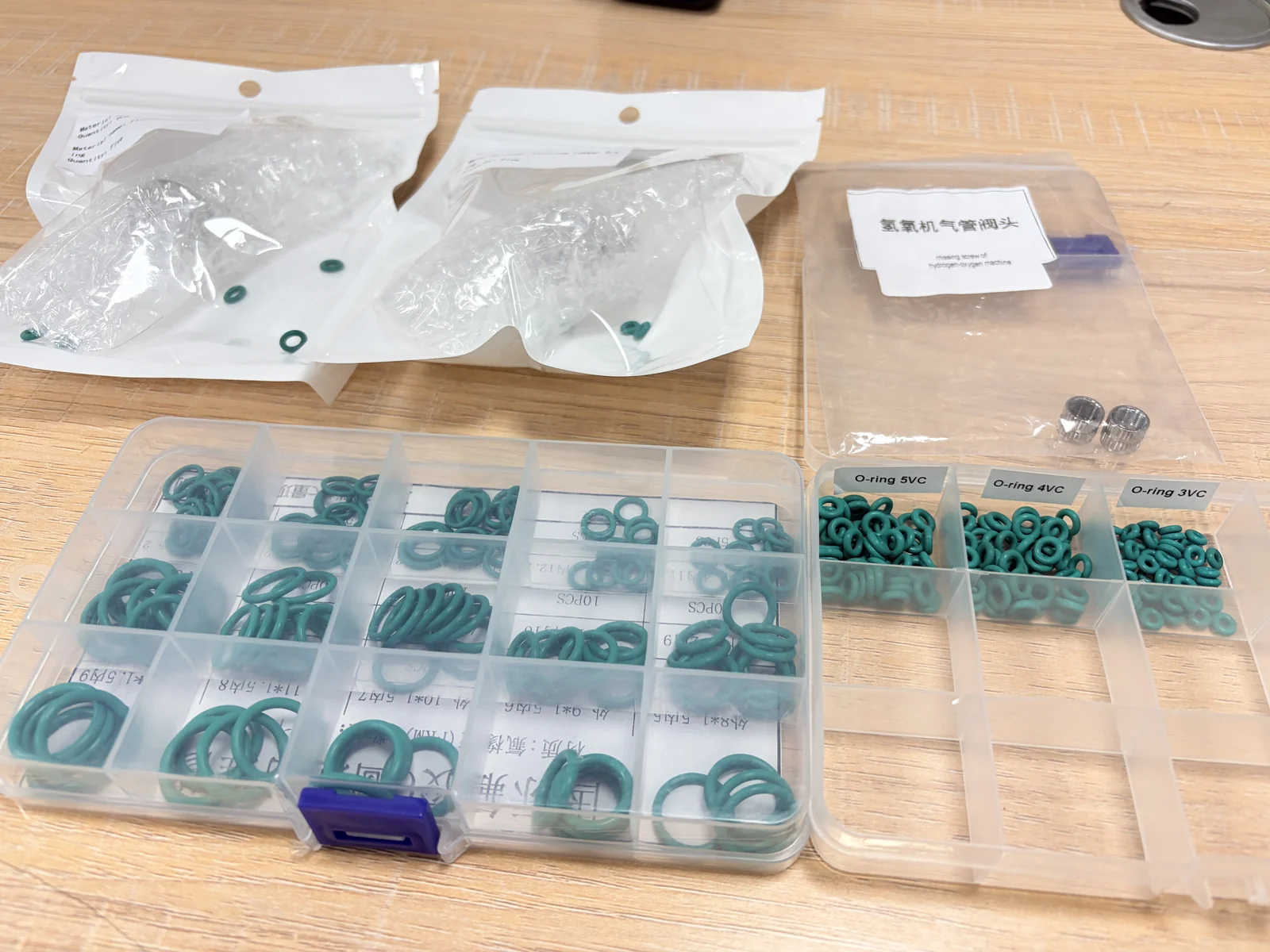

3. High-Temperature Fluoroelastomer (FKM) O-Rings: Custom-molded green fluororubber gaskets formulated for ultra-low vacuum outgassing and high thermal durability under radiant flame heating.
4. Remote Video Assembly Guidance & Technical Support: Following delivery, MatMeas provided online video-based assembly guidance and remote operational training. Technical guidance covered component connection, mechanical pump integration, HHO torch safety protocols, and tube alignment calibration.
5. Follow-On Repeat Procurement: Following the successful commissioning of the initial workstation, NYU Abu Dhabi subsequently placed repeat procurement orders for additional quartz tubes, 4VC and 5VC tube adapters, and replacement O-rings. This ongoing reorder history demonstrates the customer's continuing satisfaction and the long-term viability of MatMeas's consumable supply chain.

Rigorous 6-Point Factory Acceptance Testing (FAT) & Export Packaging

Prior to international air freight dispatch, the entire NYUAD configuration underwent a comprehensive 6-point factory acceptance test:

1. Equipment Functional Inspection: Full verification of the motorized chuck drive, stepless speed control (0–35 rpm), and digital vacuum gauge.
2. Vacuum-System Hermeticity Testing: 100% helium mass spectrometer leak check confirming joint hermeticity ≤ 2 × 10⁻¹² Pa·m³/s.
3. Quartz Tube & Accessory Dimensional Inspection: Micrometer and optical verification of OD, wall thickness, and adapter concentricity.
4. Live Flame-Sealing Functional Validation: Completed live flame seals on 2–5 mm quartz tubes to verify neck-down symmetry and hermeticity.
5. Order Configuration Verification: Comprehensive cross-checking of all delivered components, adapters, O-rings, and spare consumables against the customer's order specifications.
6. ISPM-15 Export Wooden Crating: Multi-tier suspended high-density foam cushioning with steel-reinforced corner bracing, ensuring complete transit safety from Wuhan to Abu Dhabi.

Strategic Impact & Academic Partnership

The successful delivery and continuous consumable supply to New York University Abu Dhabi highlights MatMeas's capability to provide integrated, end-to-end solutions for premier global research universities. Rather than treating instruments and consumables as disparate purchases, MatMeas delivers a cohesive workflow from machine engineering to precision glasswork and ongoing lifecycle support.
