[Materials Science] SICCAS Battery Breakthrough Powered by MatMeas Vacuum Sealer

Recently, a groundbreaking research paper was published in the premier journal Energy Storage Materials by a research team from the State Key Lab of High Performance Ceramics and Superfine Microstructure at the Shanghai Institute of Ceramics, Chinese Academy of Sciences (SICCAS). The team successfully developed a highly stable air cathode support for next-generation Lithium-Oxygen (Li-O2) batteries, tackling one of the most critical challenges in advanced energy storage.

Li-O2 batteries are considered the ultimate energy storage devices due to their exceptionally high theoretical specific energy. However, traditional carbon-based cathodes suffer from severe corrosion and side reactions during charge/discharge cycles. To solve this, the SICCAS team designed an innovative "inward vapor-solid growth" method to synthesize a superthin Titanium Carbide (TiC) skin directly onto a multi-walled carbon nanotube framework (MWNTs).

🔬 The Challenge: Precision in Vapor-Solid Reactions

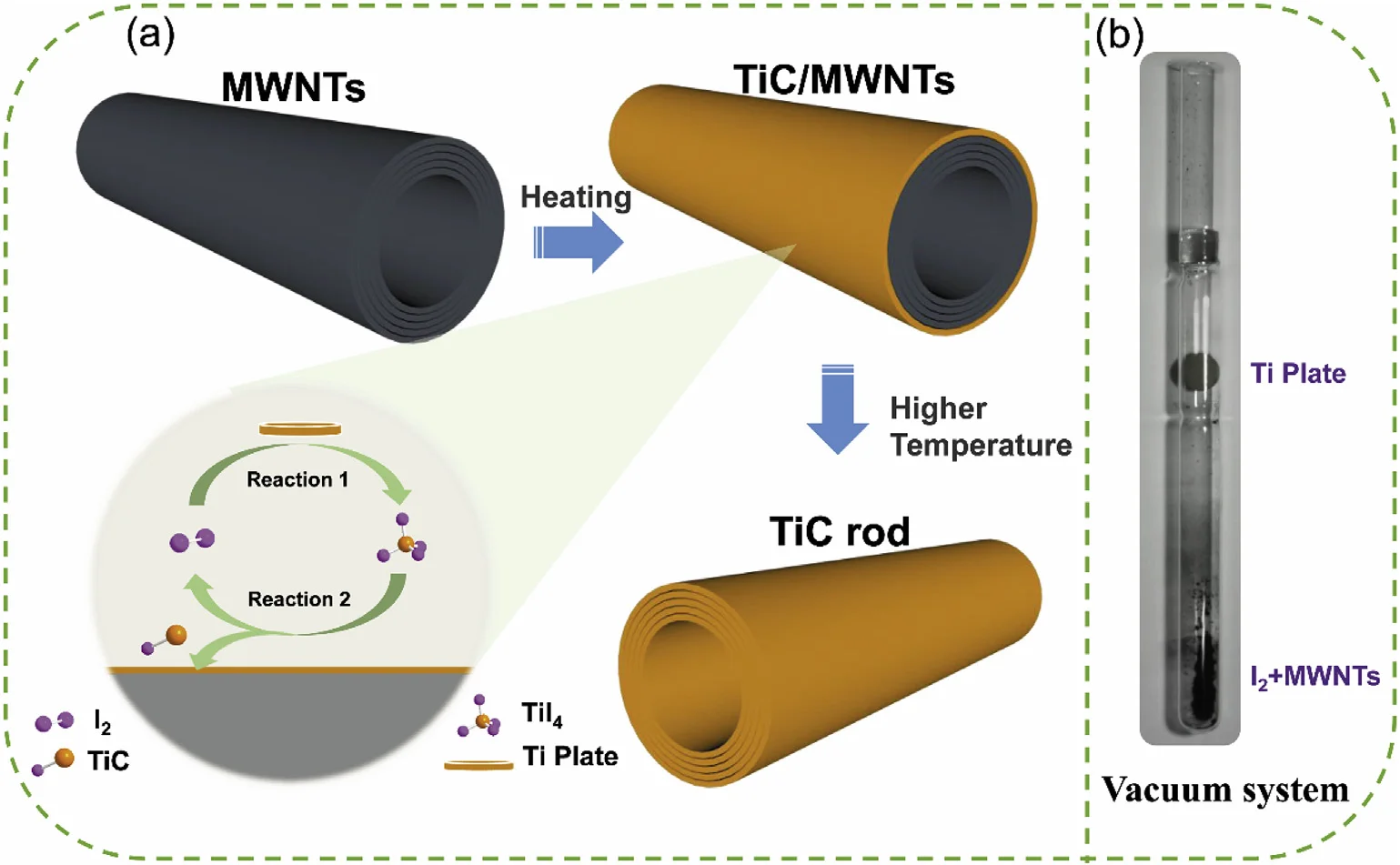

This advanced synthesis required placing MWNTs, iodine, and a titanium plate inside a quartz tube and heating them to high temperatures (up to 790 °C). For the iodine to properly sublime and react with the titanium and carbon walls without any oxygen or moisture contamination, the quartz tube had to be evacuated to a precise high-vacuum level and hermetically sealed. Any leakage would lead to severe oxidation of the precursors and experimental failure.

🌟 The Solution: MatMeas MRVS-1002 Vacuum Sealing System

To guarantee an absolutely isolated and oxygen-free reaction chamber, the elite SICCAS researchers relied on the MatMeas MRVS-1002 Vacuum Sealing System (formerly branded as Partulab).

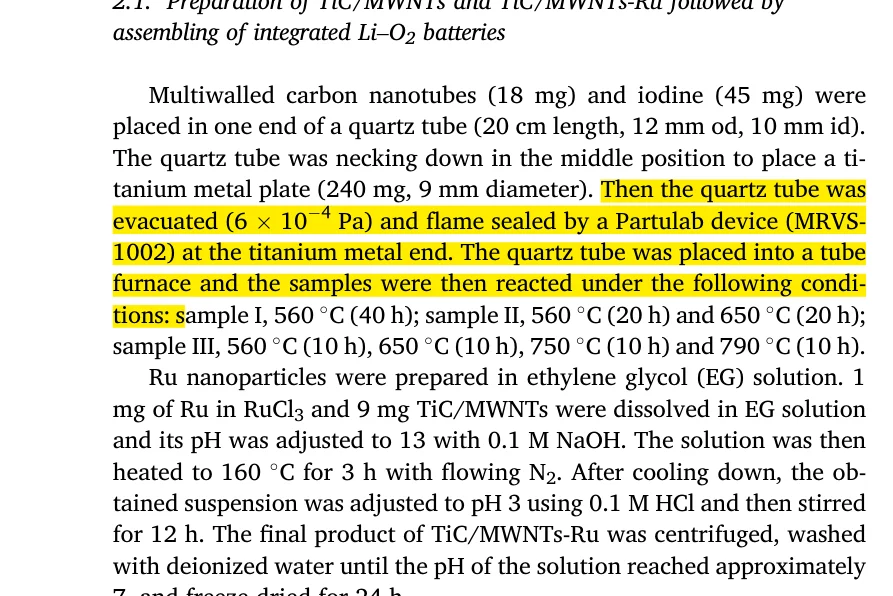

As explicitly detailed in the paper's Experimental Section (2.1):

"The quartz tube was evacuated (6 × 10^-4 Pa) and flame sealed by a Partulab device (MRVS-1002) at the titanium metal end. The quartz tube was placed into a tube furnace and the samples were then reacted..."

The experimental section of the publication directly highlighting the use of the MatMeas MRVS-1002 Vacuum Sealing System.

By utilizing the MRVS-1002 system, the researchers effortlessly achieved a high-vacuum, flawless flame seal. This trusted encapsulation ensured the precursors were perfectly protected during the complex high-temperature vapor-solid reaction.

📈 Microscopic Validation of Superthin TiC Skin

The research team performed Transmission Electron Microscopy (TEM) and X-ray diffraction (XRD) to confirm the successful inward growth of the superthin TiC layer.

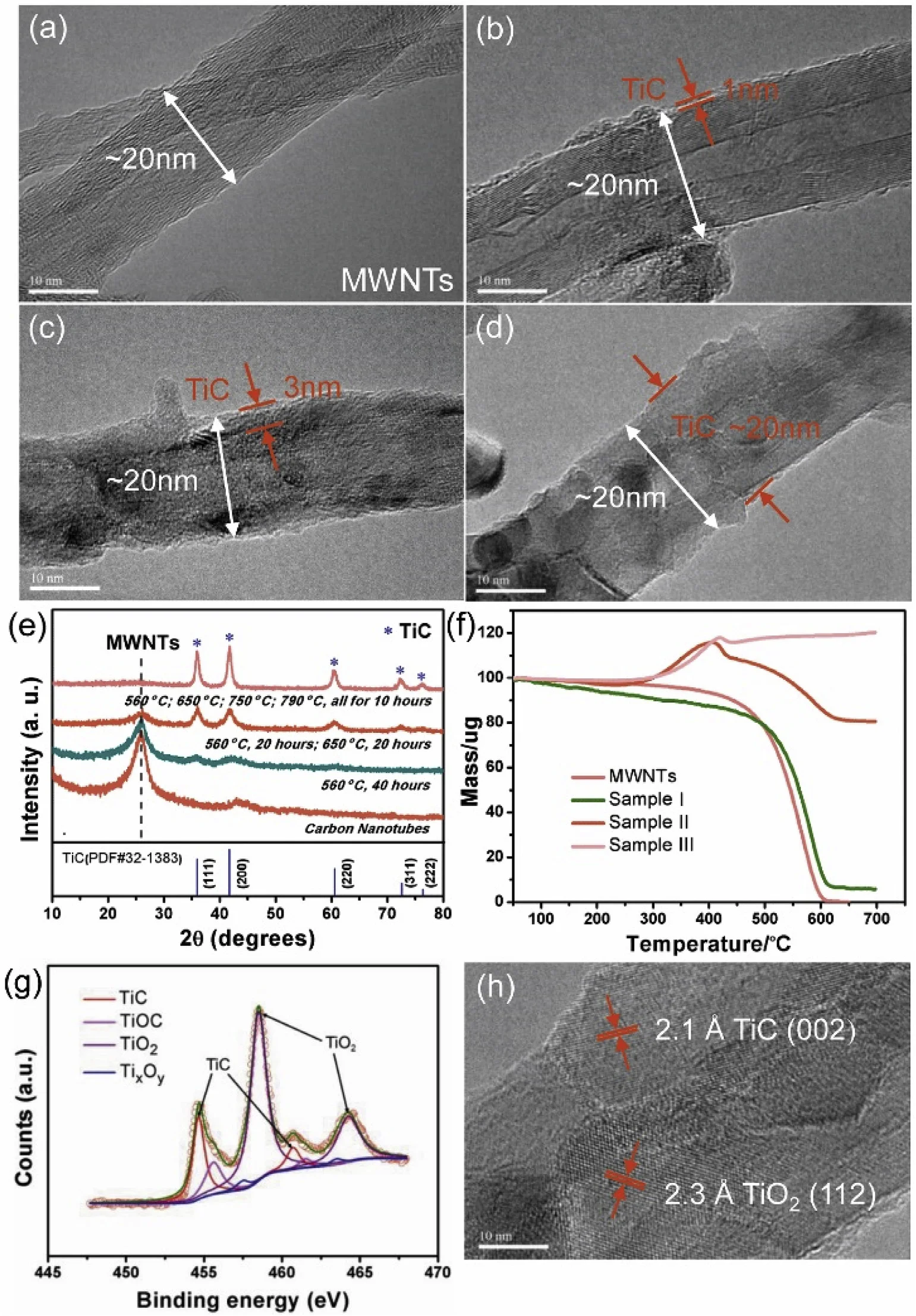

Figure 1 demonstrates the precise formation of the TiC layer on the MWNTs, validated through TEM images and XRD patterns.

🔥 Exceptional Long-Term Cyclability

Ultimately, enabling the Li-O2 battery to exhibit exceptional long-term cyclability with minimal by-products. The engineered cathode maintained remarkable stability over numerous charge and discharge cycles.

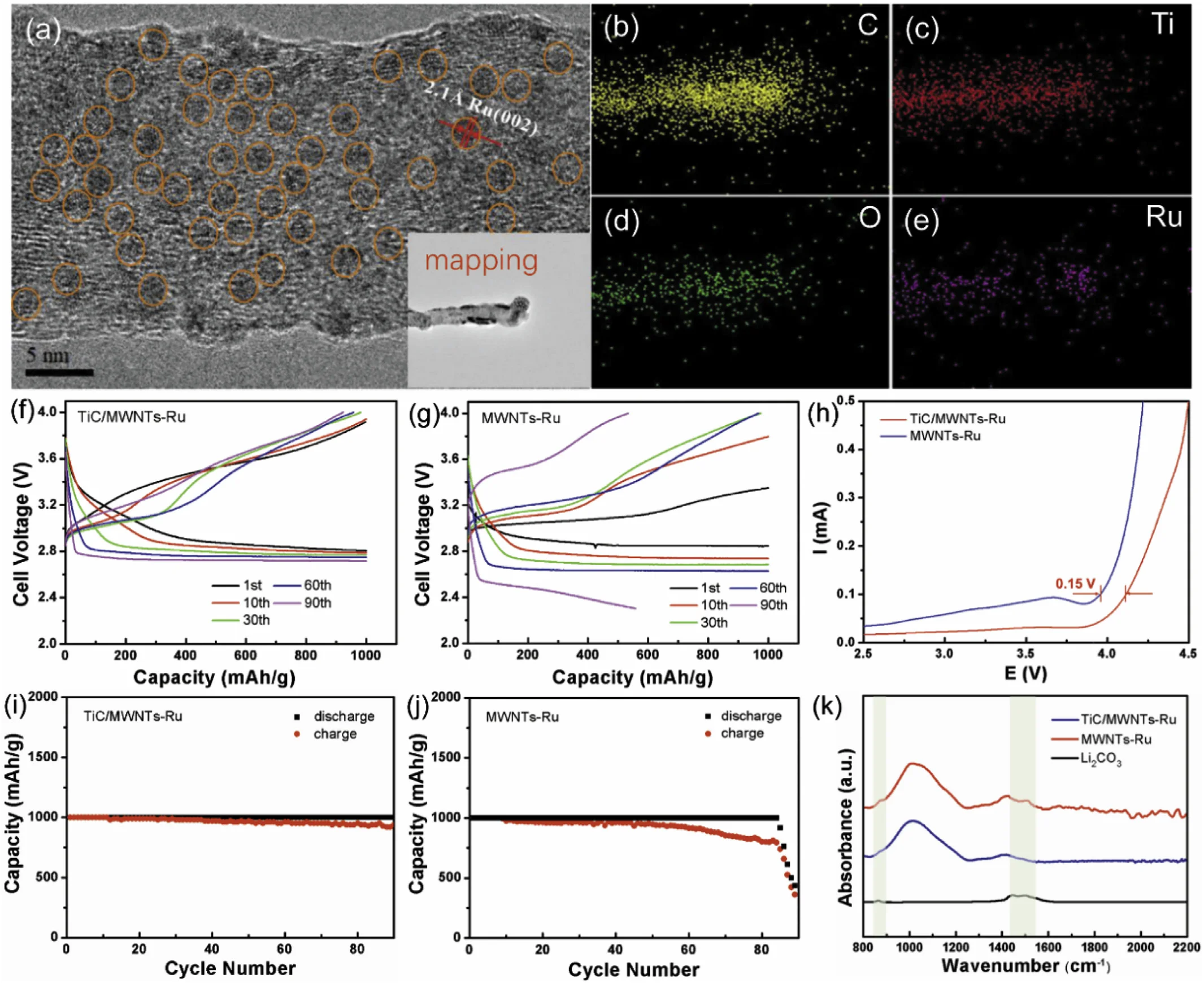

Figure 3 showcases the voltage profiles and cycling performance, confirming 90 highly stable cycles for the optimized TiC/MWNTs-Ru cathode.

Empowering Global Laboratories

Groundbreaking battery technologies require uncompromising lab infrastructure. The successful application of the MRVS-1002 system by the world-leading researchers at the Chinese Academy of Sciences is a powerful endorsement of its superior vacuum stability, precision, and reliability in complex material synthesis.

Explore our latest generation MatMeas MRVS-1003 High-Vacuum Rotary Sealing System. It offers adjustable rotary motion, an ultra-low leak rate, and high-temperature flame capabilities, eliminating the guesswork from your tube-sealing processes. Visit our official website or contact our expert technical team for a customized quotation today!

---
