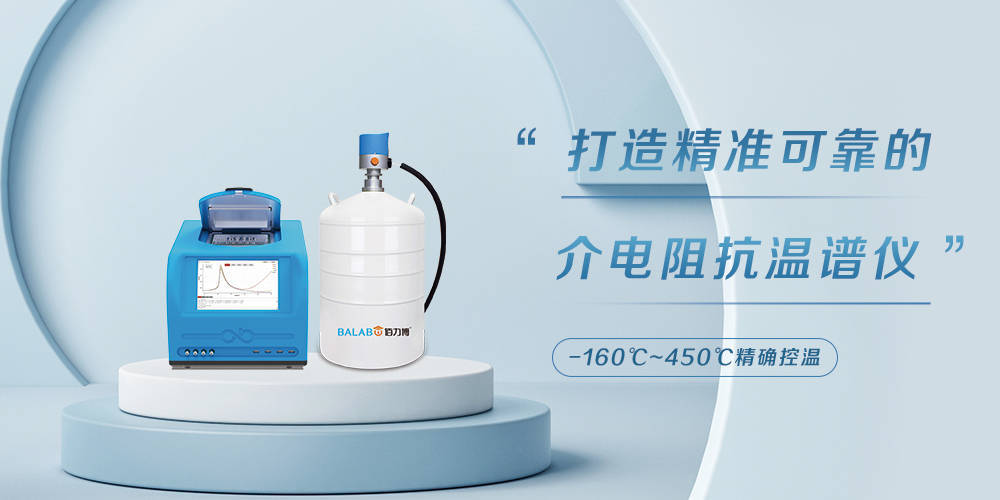

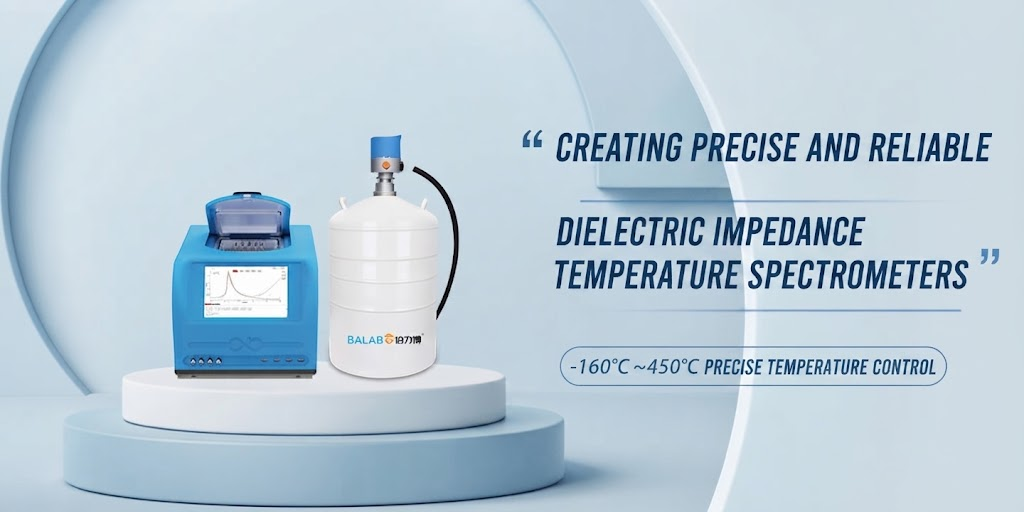

DMS2000 High-Low Temperature Dielectric Spectrometer

Dielectric materials play a critical role in modern electronics, energy storage, and functional ceramics. Accurate characterization of their dielectric and impedance properties across a wide temperature range is essential for evaluating performance, stability, and reliability. The MatMeas DMS2000 High-Low Temperature Dielectric Spectrometer is engineered to address these testing challenges, offering precise environmental control and comprehensive measurement capabilities.

Core Measurement Capabilities

The DMS2000 is designed to precisely evaluate key parameters that define dielectric performance. It supports the determination of the Curie temperature, a critical phase-transition metric for ferroelectric and piezoelectric materials. By mapping impedance Nyquist plots and dielectric Cole-Cole plots, researchers can gain deep insights into the impedance characteristics, dielectric relaxation processes, and underlying microstructural behavior of the sample. These comprehensive datasets are vital for optimizing material formulations and quality control.

Precision Temperature and Frequency Control

Thermal stability is paramount for accurate dielectric spectroscopy, especially during cryogenic sweeps. Traditional immersion cryostats suffer from severe temperature fluctuations and mechanical vibrations caused by the boiling off of liquid nitrogen. The DMS2000 completely eliminates this problem by integrating a proprietary LNP-95 liquid nitrogen injection and vaporization system. This advanced architecture provides ultra-smooth, continuous temperature variation from -160°C to 450°C with exceptional ±0.5°C accuracy, completely free from boiling-bath vibrations.

Furthermore, cryogenic testing typically causes atmospheric moisture to condense and freeze on the sample, generating massive false "water peaks" in the impedance data near 0°C. To ensure absolute data fidelity, the DMS2000 utilizes a vacuum-enabled sample chamber that strictly isolates the sample in a high-vacuum environment. This guarantees 100% frost-free, artifact-free data across the entire cooling and heating cycle.

The system offers broad frequency sweep capabilities, accommodating measurements from 20 Hz up to 30 MHz in its single-channel configuration, and up to 10 MHz when utilizing the five-channel high-throughput setup.

Industrial and Research Applications

The ability to conduct automated high-low temperature cyclic testing allows the DMS2000 to accurately simulate real-world thermal environments. This capability is crucial for assessing the long-term durability and performance stability of materials before deployment in harsh conditions. With support for a wide range of sample types—including polymers, advanced ceramics, and ferroelectrics—the DMS2000 provides a robust, seamless testing solution tailored for both rigorous academic research and high-throughput industrial screening.

FAQs

Q: How does the DMS2000 prevent thermal frosting and false water peaks near 0°C during cryogenic testing?

A: When standard dielectric fixtures are cooled with liquid nitrogen, atmospheric moisture condenses and freezes on the sample, creating massive false 'water peaks' in the impedance data near 0°C. The MatMeas DMS2000 fundamentally solves this by incorporating a proprietary vacuum-enabled sample chamber, strictly isolating the sample in a high-vacuum environment to guarantee 100% frost-free, artifact-free data from -160°C to 450°C.

Q: Why is the DMS2000 more stable than traditional liquid nitrogen bath cryostats?

A: Traditional immersion cryostats suffer from severe temperature fluctuations caused by the boiling off of liquid nitrogen, leading to noisy dielectric measurements. The DMS2000 utilizes an advanced, proprietary LNP-95 liquid nitrogen injection and vaporization system that provides ultra-smooth, continuous temperature variation (±0.5°C accuracy) without the mechanical vibration or thermal shocks of boiling baths.

Q: What are the measurement throughput and frequency capabilities of the system?

A: The highly integrated DMS2000 platform supports variable research needs. It offers a single-sample testing configuration with an ultra-wide frequency range from 20 Hz up to 30 MHz. Additionally, it provides a high-throughput configuration capable of measuring five bulk samples simultaneously across a frequency range of 20 Hz to 10 MHz.
