Piezoelectric Polarization Methods: Domain Switching Kinetics and High-Voltage SOP

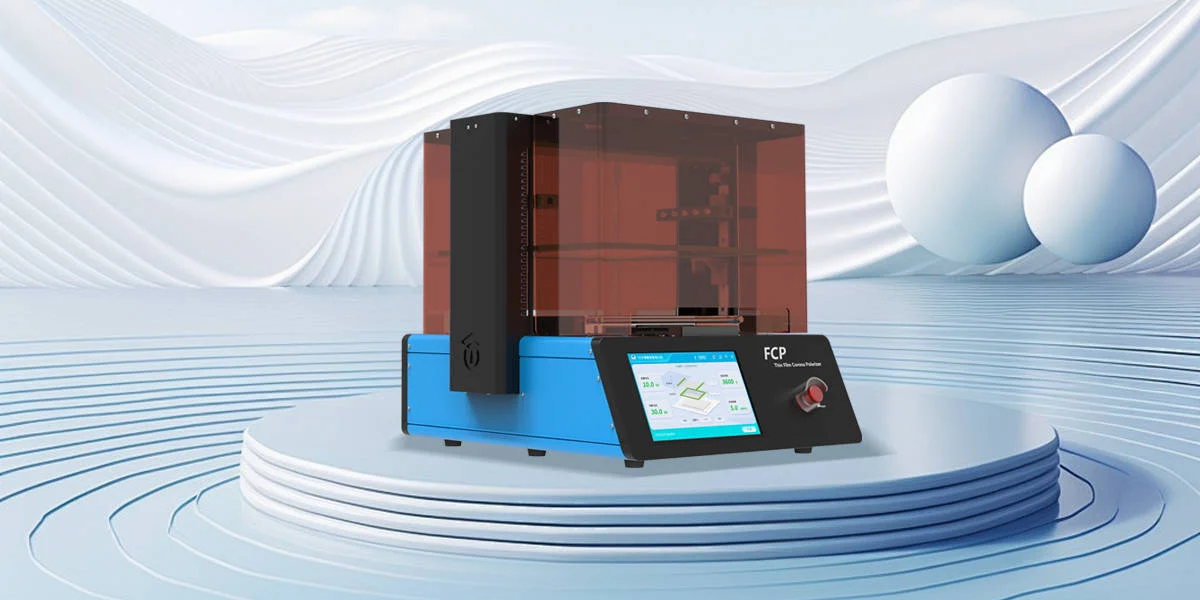

MatMeas FCP thin film corona poling system configured for precision high-voltage polarization

Executive Summary (TL;DR): Evaluating piezoelectric polarization methods is the critical high-voltage conditioning process that aligns randomly oriented ferroelectric domains in polycrystalline ceramics, single crystals, and electroactive polymer films (such as PVDF). Applying an external electric field exceeding the material's coercive field (E_pol ≥ 2 to 3 × E_c) at elevated temperatures locks in macroscopic remanent polarization (P_r), activating longitudinal piezoelectricity (d₃₃ = 2·Q₁₁·ε₀·ε_r·P_r). While bulk ceramics utilize heated silicone oil-bath DC poling up to 30 kV, ultra-thin polymer films (10–50 µm) require non-contact corona discharge poling to avoid pinhole arcing. For project teams needing contract specimen polarization or d₃₃ verification, consult our accredited MatMeas Testing Services; for turnkey laboratory poling equipment, evaluate the MatMeas FCP Thin Film Corona Poling System and MatMeas VBT-30KV High-Voltage Breakdown & Poling Tester.

In modern electronic engineering and functional materials science, piezoelectric poling is the indispensable physical processing step that transforms centrosymmetric sintered ceramics and synthesized polymer films into active electromechanical transducers. From medical ultrasonic imaging probes and industrial acoustic emission sensors to precision nanopositioning stages and vibrational energy harvesters, these active materials underpin vital technologies. However, freshly sintered ferroelectric ceramics and cast polymer membranes exhibit zero net macroscopic piezoelectricity (d₃₃ ≈ 0 pC/N).

Without polarization, spontaneous electric dipoles within individual crystalline grains or polymer lamellae remain randomly oriented across crystallographic variants, canceling out macroscopic electrical responses. High-voltage piezoelectric poling reorients these ferroelectric domains along a defined external vector, establishing permanent remanent polarization that converts an otherwise inactive specimen into a responsive electromechanical transducer.

The Physical Principles of Ferroelectric Domain Polarization

Ferroelectric materials possess spontaneous internal polarization below their Curie transition temperature (T_C). In unpoled polycrystalline ceramics—such as lead zirconate titanate (PZT) or lead-free potassium sodium niobate (KNN)—the orientation of spontaneous dipoles is disordered across neighboring domains and grains. Applying an external electric field that substantially exceeds the material's intrinsic coercive field (E_c) drives domain wall movement:

1. 180° Domain Reversal: Domains whose spontaneous polarization vectors directly oppose the applied electric field flip 180° via low-energy nucleation and forward domain wall growth without inducing internal lattice shear strain.
2. Non-180° Ferroelastic Domain Switching: Domains oriented at 90° (in tetragonal perovskite symmetry) or 71°/109° (in rhombohedral symmetry) rotate to align with the nearest crystallographic field vector. This non-180° reorientation generates massive anisotropic internal lattice strains (c/a - 1) that contribute significantly to the extrinsic piezoelectric response.
3. Domain Switching Kinetics and Merz Law: The velocity (v) of propagating ferroelectric domain walls under an applied electric field E follows the classical Merz empirical relation:

   v = v_inf · exp(-α / E)


   where v_inf represents acoustic limiting velocity and α is the characteristic activation field. To achieve domain saturation, the poling field E_pol must satisfy E_pol ≥ (2 to 3) · E_c.
4. Remanent Polarization and Piezoelectric Response: Once domain saturation is achieved and the external field is removed, internal elastic clamping and defect dipoles prevent domains from randomizing, establishing permanent remanent polarization (P_r). The resulting small-signal longitudinal piezoelectric coefficient d₃₃ is coupled to remanent polarization via the electrostrictive tensor:

   d₃₃ = 2 · Q₁₁ · ε₀ · ε_r · P_r


   where Q₁₁ is the longitudinal electrostrictive coefficient, ε₀ is vacuum permittivity (8.854 × 10⁻¹² F/m), and ε_r is the relative dielectric permittivity of the poled ceramic.

Polarization Modalities: DC Oil Bath, Pulsed, and Corona Poling

Selecting the optimal poling technique depends on specimen geometry, dielectric breakdown strength, electrical conductivity, and electrode configuration.

The tables below benchmark the primary polarization modalities across engineering criteria:

While DC oil-bath poling remains standard for bulk ceramics (see our detailed guide on piezoelectric ceramic polarization factors), thin polymer films are vulnerable to pinhole dielectric punch-through. Corona poling deposits a continuous sheet of surface ions, creating enormous internal electrostatic fields without requiring deposited metallic electrodes, as detailed across our comparison of piezoelectric thin-film poling methods.

Ferroelectric Poling Process Windows Across Material Classes

Formulation adjustments drastically alter ferroelectric domain mobility, switching barriers, and operational limits. Acceptor dopants create defect dipoles that pin domain walls, requiring elevated temperatures and higher fields, whereas donor dopants lower coercive fields.

The tables below compile empirical poling parameters across functional ceramic and polymer classes:

Elevating temperature lowers the coercive field, allowing non-180° domain switching without requiring electric fields that exceed dielectric puncture thresholds. To avoid thermal depoling, the electric field must be maintained continuously while the oil bath cools below 40°C.

High-Voltage Poling Safety SOP & Breakdown Mitigation

Achieving high electromechanical coupling while avoiding mechanical fracture or dielectric punch-through requires strict adherence to standardized operating procedures conforming to IEEE 176 and ASTM standards.

1. Pre-Inspection & Clean Degreasing: Inspect sintered specimens for edge chips, micro-cracks, or conductive pinholes. Thoroughly degrease surfaces in an ultrasonic ethanol bath. Ensure electrode metallization terminates 0.5 mm inside the perimeter to suppress edge tracking in silicone oil.
2. Slow-Ramp Field Application: Applying a multi-kilovolt step voltage abruptly induces violent 90° ferroelastic switching. The sudden anisotropic lattice strain generates microcracks along grain boundaries. Programmable high-voltage supplies must ramp the electric field smoothly at rates between 100 V/s and 500 V/s with active hardware microamp trip interlocks (<10 µs response).
3. Thermal Soaking & Dwell: Elevate the oil bath to the recommended poling temperature (e.g., 110°C to 130°C for PZT) under gentle stirring. Dwell at maximum field for 15 to 30 minutes to ensure full domain switching across internal crystallites.
4. Sustained-Field Cooling & Discharge Lock-in: Never remove the voltage while the specimen is hot. Thermal kinetic energy will cause non-180° domains to back-switch, degrading remanent polarization. Cool the bath below 40°C with the electric field fully active, safely ground through bleeder resistors, and age the sample for 24 hours before d₃₃ verification (conforming to the piezoelectric d33 coefficient measurement guide). For monitoring space-charge trap relaxation and thermal depoling dynamics, specimens undergo thermally stimulated depolarization current testing.

Instrumentation & Dual-Funnel Conversion Path

MatMeas delivers high-voltage polarization infrastructure engineered for research and pilot manufacturing:

1. Turnkey Capital Equipment:
   • MatMeas FCP Thin Film Corona Poling System: Dedicated non-contact electrostatic poling platform delivering 0 to -30 kV / 2 mA negative corona discharge across a 200 mm × 200 mm active stage. Equipped with optional FCPHT150 heating stage (≤150°C), it uniformly poles ultra-thin PVDF and P(VDF-TrFE) films without pinhole short-circuits.
   • MatMeas VBT-30KV Voltage Breakdown & Poling Tester: High-precision 30 kV DC high-voltage generator with integrated silicone oil bath heating (RT to 180°C) and microsecond-level isolation interlocks, designed for bulk ceramic polarization and dielectric breakdown testing.
   • MatMeas PMS-1000 Piezoelectric Temperature Measurement System: In-situ high-temperature d₃₃ metrology station for thermal depoling and Curie point characterization up to 800°C.
2. Authorized Laboratory Testing Services:
   • For research institutions and sensor developers needing specialized sample poling, corona trial runs, or post-poling piezoelectric d₃₃ validation, MatMeas Testing Services provides rapid contract processing under strict quality standards.

---

Frequently Asked Questions

Why must piezoelectric ceramics be poled at elevated temperatures in an oil bath?

Elevating the temperature toward the Curie point increases thermal lattice energy, substantially lowering the coercive field (E_c) required to switch ferroelectric domains. This allows complete domain alignment at practical electric fields without exceeding dielectric breakdown limits. Immersing the ceramic in high-dielectric silicone oil suppresses air ionization flashover and ensures uniform thermal distribution across the specimen.

How does corona discharge poling prevent catastrophic punch-through in thin polymer films?

In conventional contact poling, continuous metal electrodes act as equipotential planes; a localized microstructural pinhole causes the entire stored capacitive energy to dump through the defect in a destructive short-circuit arc. In corona poling, ions are sprayed electrostatically onto the bare polymer surface. If a microscopic pinhole conducts, charge dissipates only locally through self-limiting current, leaving the adjacent film undamaged and fully polarized.

Why is it essential to maintain the electric field during the cooling phase of poling?

Domain switching involves overcoming an elastic energy barrier. When domains align at elevated temperatures, thermal fluctuations remain high. Removing the electric field while the material is hot allows thermal agitation to re-randomize non-180° domains back into low-strain orientations. Maintaining the electric field until the bath cools below 40°C locks aligned dipoles securely into the crystal lattice, maximizing remanent polarization (P_r) and the piezoelectric d₃₃ coefficient.

What is the recommended aging period between poling and d₃₃ measurement?

Immediately after poling, unstable domain walls and internal mechanical stresses gradually relax, causing a 2% to 5% decrease in the small-signal piezoelectric coefficient. In accordance with IEEE 176 standards, poled ceramics and polymer films should be short-circuited and stored at room temperature for at least 24 hours before definitive d₃₃ evaluation on a quasi-static Berlincourt meter.
